Misplacement of Central Venous Catheters
The misplacement or malposition of a central venous catheter describes the improper location of the catheter tip.1
Did you Know?
Where is the "ideal" catheter tip location?
The tip of the catheter should be in as large a central vein (SVC or IVC) as possible
- ideally outside of the pericardial sac
- parallel with the long axis of the vein
- the tip does not abut the vein or heart wall at an acute angle or end on1,5
Why is it important to achieve an "ideal" catheter tip location for CVC?
- Infusion of vasopressors, irritant drugs or parenteral nutrition requires maximal dilution
- Avoiding the mixing of multiple drugs
- Extracorporeal circuits, e.g. dialysis requires very high blood flow rate passing by the catheters, and separation of inflow and outflow of catheters to avoid blood recirculation
- Measurement of ScvO2 requires catheter tip lies in or as close to the right atrium as possible
Misplacement/Malposition is one of the most common complications related to a CVC3,4
Misplacement/Malposition could occur in different CVC application process steps: during insertion or in a later application by catheter migration3,4
Catheter tip positions in the real practice
Radiographic identified catheter tip position (%) vs. puncture site6
Catheter tip positions are shown in percent of the toal number of cannulations at each puncture site.
1. Right atrium, 2. Caudal third of superior vena cava (SVC), 3. Cranial two thirds of SVC or brachiocephalic veins, 4. Intrathoracic part of right subclavian vein, 5. Intrathoracic part of left subclavian vein, 6. Right internal jugular vein, 7. Left internal jugular vein, 8. Other
Incidence of complication (%) vs. puncture site
Potential Causes of Catheter Misplacement

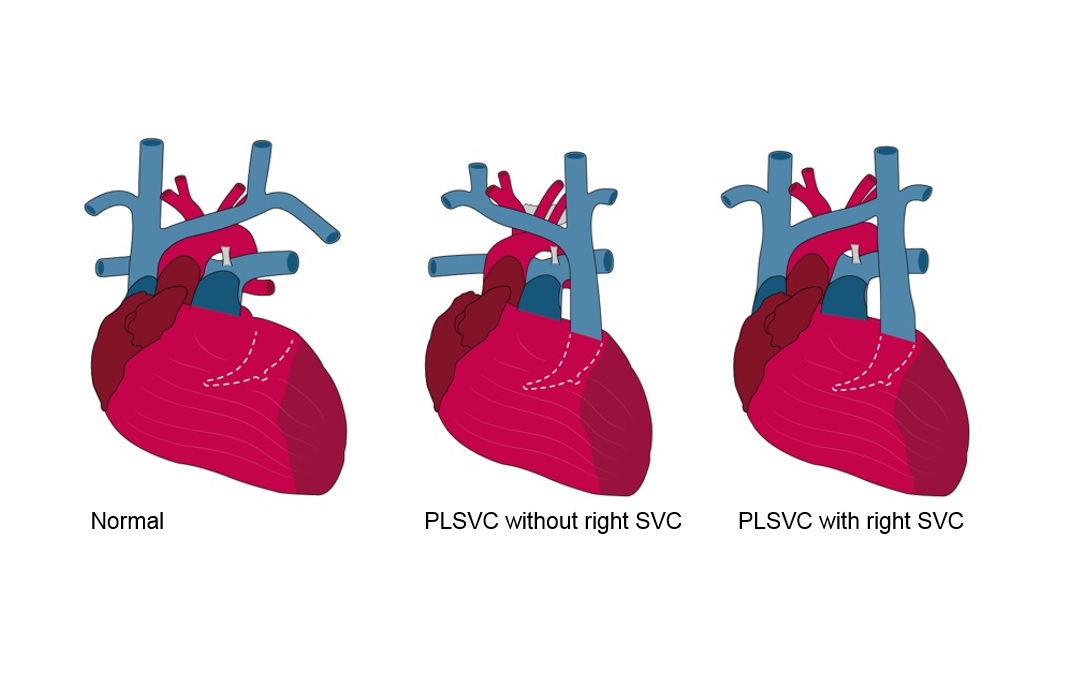

- Complex or abnormal anatomy (e.g. dilated azygos vein, high CVP, blocked SVC, IVC, persistent left superior vena cava)
- Staff lack of knowledge, training and experience
- Under time pressure, stressful environment
- No navigation technique available (Ultrasound, ECG)
- Inappropriate catheter size or length
Type and Position of Catheter Misplacement8
Complications related to CVC application
- Catheter dysfunction
- Delay of critical therapy (e.g. Vasopressors)
Complications related to the misplaced location
- Carotid Artery: Hypotension, hemorrhagic shock
- Azygos Vein: Pleural diffusion pulmonary edema, dyspnea, chest pain, back pain
- Pericardium: Fatal ventricular fibrillation
- Drug extravasation into surrounding -> tissue necrosis, organ dysfunction8
Estimated level of costs (time, material, and personnel) related to diagnostic procedures, delay of therapy and required management for misplaced CVC8-11
Select the proper vessel
- Incidence of malpositioning is higher in the left thoracic venous system than in the right side
- The right side of the circulation should be considered of first preference for CVC insertion unless those insertion sites are contraindicated
- Use ultrasound for selecting the proper vessel for insertion
Select proper catheter length according to the insertion site and patient´s condition
Select proper technique to guide insertion and confirm tip position
- Ultrasound guidance
- Intraatrial (Intravascular) ECG
- Chest X-Ray
- Other supporting methods/techniques: electromagnetic, manometry (needle and catheter), pressure waveform analysis, blood gas analysis8-11
Use of Valve Needle for venous access: save time/no disconnection needed
Verification of Catheter Position with Medical Imaging
- Plain Chest X-Ray is most commonly used to confirm catheter position within the chest and to detect pneumothorax, haemothorax or effusions after CVC placement
- Due to the 2D projection the close anatomical proximity of major arteries, veins, and pleura in the neck and chest causes difficulties and it is not possible to reliably state whether the distal section of the catheter is in an artery, vein, pleura, or mediastinum in the chest
- The intraatrial (intravascular) ECG technique can be used to confirm CVC tip position during or after CVC placement
- Ultrasound can be used to assess the jugular, femoral, axillary, and arm veins to aid insertion of a CVC, but is of limited value in confirming tip position in the SVC
- Transesophageal ultrasound (TEE) can be used if available to directly image the SVC, but this has practical limitations due to availability and operator training
- Transthoracic echo (TTE) can identify catheters in the RA, particularly with the injection of bubble contrast, but is not used in routine practice8-11
