Ureofix® 500 Classic with bottom outlet bag

Urine measurement system for diuresis

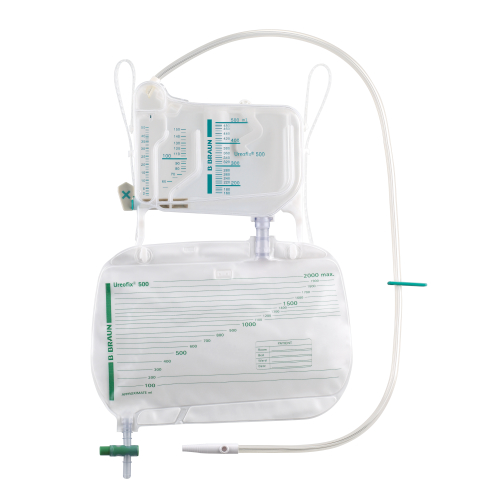

Ureofix® 500 Classic is a closed sterile urine measurement system dedicated to diuresis and evaluation of urine quality, which allows an accurate urine volume measurement. The set includes a bottom outlet bag pre-mounted on a rigid 3-compartment container.


  • Rigid 3-compartment container with a capacity of 500 ml
    • Dry Pasteur drip chamber with anti-reflux valve to prevent retrograde migration of bacteria and venting air inlet filters for pressure balance
    • Vented measuring chamber divided in 3 compartments with 50 ml, 150 ml and up to 500 ml fine measuring for accurate urine measurement
    • Emptying of the container with clearly identified flow direction on the tap
  • 2 L bottom outlet bag pre-mounted
    • Simple twist bayonet connector for safe connection without leakage
    • Anti-reflux valve and air inlet to prevent urine back flow
    • Bag design with approximate graduation scale and clear patient identification space
    • Free flow, no touch, bottom cross-outlet for quick and clean emptying
    • Cross-outlet can be stored horizontally to decrease the risk of infection
  • Transparent tubing with slide clamp, available in 120 cm, 170 cm or 200 cm length
  • Needle-free sampling port on the tubing stage connector to match international recommendations for a better safety of the user
  • Large choice of fixation solutions on all types of beds and supports:
    • 2 punched hole straps pre-mounted on the container for permanent fixation on the bed frame
    • Integrated removable hook pre-mounted on the back side of the container for quick fixation
    • Pin and tip jack system for permanent fixation and quick repositioning
    • Removable fixation plate


Ureofix® is intended for closed urinary drainage and concomitant monitoring of the urinary output of critically ill patients.
