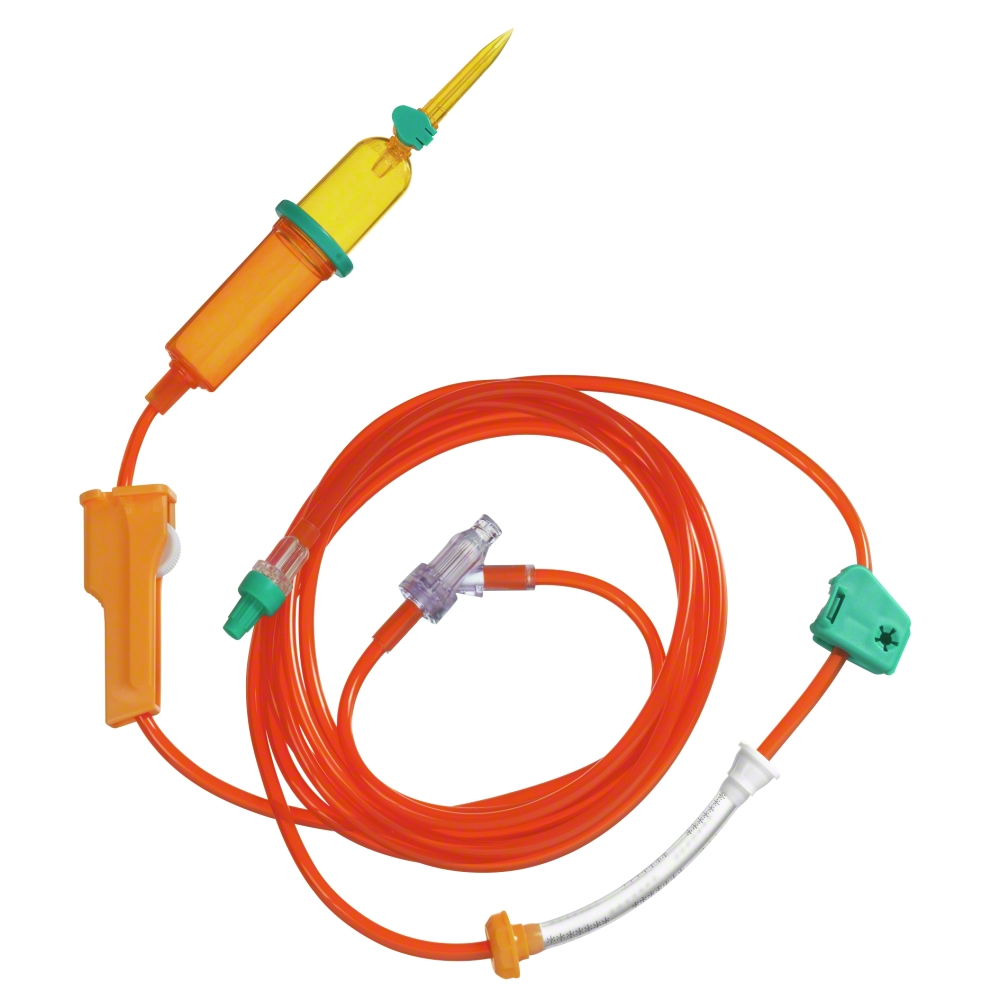

Infusomat®plus Line UV-light protected (not manufactured with PVC)

Dedicated IV administration set for light sensitive drugs

Infusomat®plus Line UV-protect are dedicated IV lines for the administration of light sensitive drugs up to a protection rate of 520 nm wave length in combination with B. Braun Infusomat® compactplus. The line consists of PUR (not manufactured with PVC and DEHP) and a silicon pump segment. The sets are equipped with 15 μm AirStop filter and PrimeStop cap and are available with and without needle-free injection port. The color codes and shapes of the pump element guide the users while they are loading the pump quickly and safely.


  • Light protection up to 520 nm
  • Characteristic orange color coding
  • Silicone pump segment for high delivery accuracy and long-term consistency (up to 96h usage time)
  • Printing pattern indicate correct loading
  • Different colored fastening clips on the lower and upper part of the silicone pump segment for easy and secure tubing guidance
  • Set based free-flow protection clamp, automatically clamps the line whenever the tubing is removed from the pump
  • Roller clamp with line holder and spike protector for safe disposal
  • Sharp piercing spike for easy piercing of different container ports
  • Bacteria-tight proven air vent, closable with handy snap cap
  • 20 drops 1 ml ± 0.1 ml
  • Fluid filter (<15 μm poresize) including AirStop membrane
  • Patient connector with PrimeStop cap. Ensures automatic priming and prevents fluid from dripping out. Maintains closed system until connected to the patient
