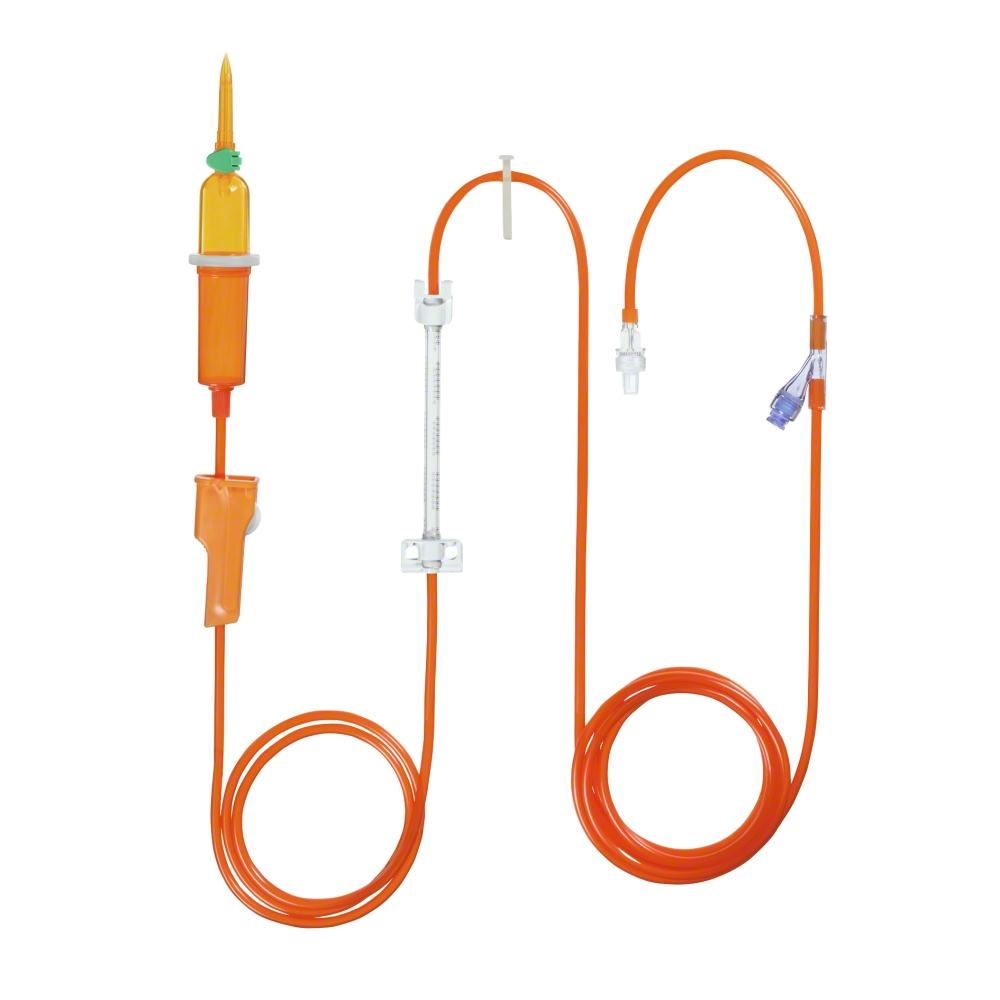

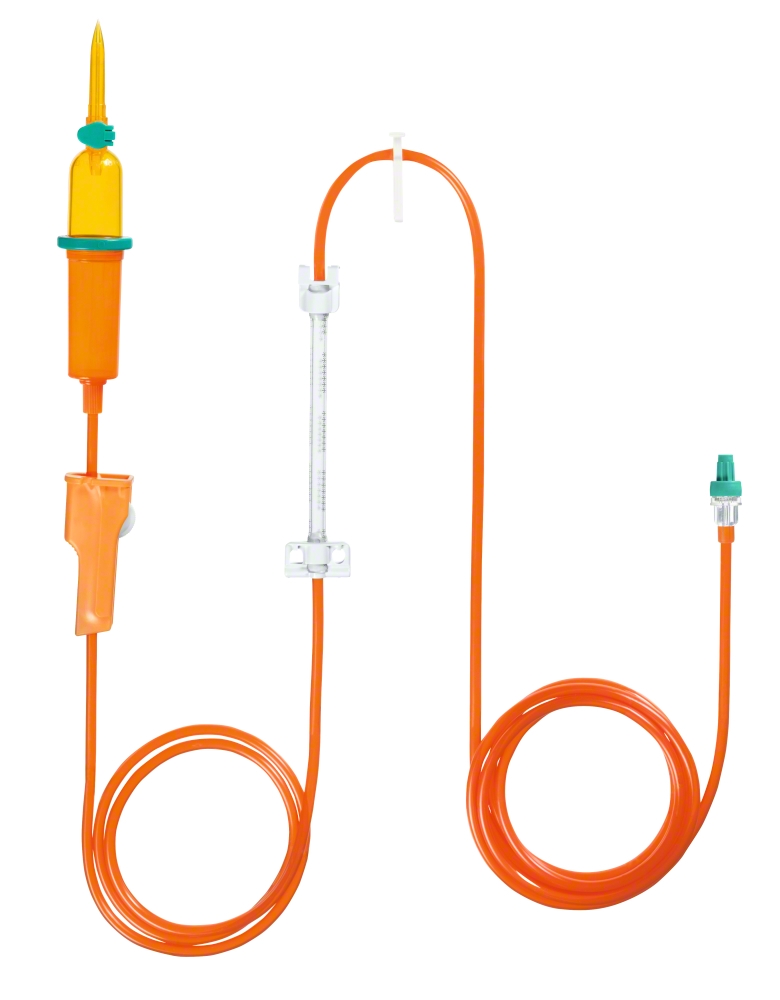

Infusomat® Space® Line UV-light protected (not manufactured with PVC)

IV administration set for light sensitive drugs. For application by compatible pumps or gravity.

Infusomat® Space® Line UV-protect are dedicated IV lines for the administration of light sensitive drugs up to 520nm wave length in combination with B. Braun Infusomat® Space®, Infusomat® Spaceplus and Infusomat® fmS.

The line consists of PUR (not manufactured with PVC and DEHP) and a silicon pump segment. The sets are equipped with 15 μm fluid filter including AirStop filter and PrimeStop-Cap and are available with and without needle-free injection ports. The color codes and shapes of the pump element guide the user while loading the pump quickly and safely.


  • Light protection up to 520 nm
  • Characteristic orange color coding
  • Silicone pump segment for high delivery accuracy and long-term consistency (up to 96h usage time)
  • Printing pattern indicates correct loading
  • Set based free-flow protection clamp, automatically clamps the line whenever the tubing is removed from the pump
  • Roller clamp with line holder and spike protector for safe disposal
  • Sharp piercing spike for easy piercing of different container ports
  • Bacteria-tight proven air vent, closable with handy snap cap
  • 20 drops 1 ml ± 0.1 ml
  • Fluid filter (<15 μm pore size) including AirStop membrane
  • Patient connector with PrimeStop Cap. Ensures automatic priming and prevents fluid from dripping out. Maintains closed system until connected to the patient.
