Cementless acetabular revision

Plasmafit® Revision is an acetabular cup system for both primary treatment and revisions of differently located acetabular defect situations.

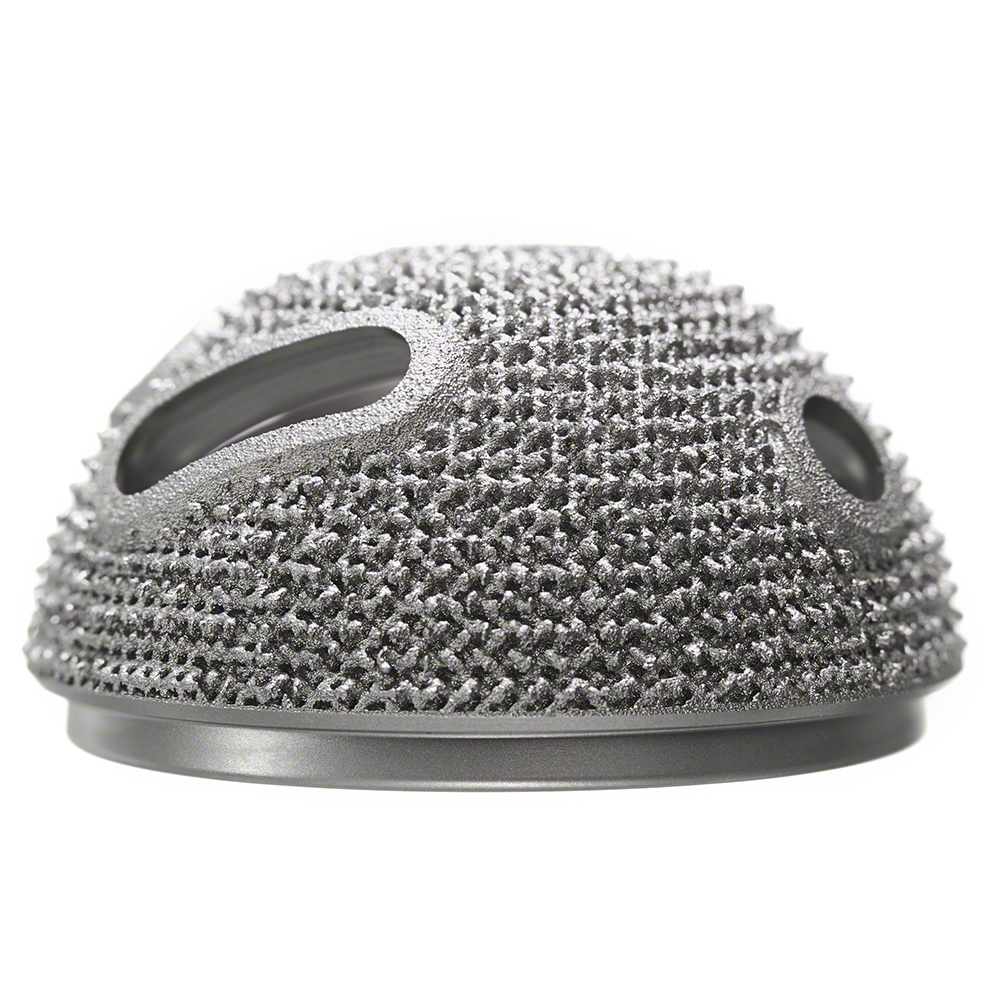

The hemispherical shape and the laser-sintered titanium structure of the acetabular cup provide high primary stability. To achieve good stability for larger acetabular defects, the design has a total of five options for anchoring screws.

In addition, Structan® Augments can be combined with the Plasmafit® Revision cup for treating larger defects.

Plasmafit® Revision – Characteristics

  • High grip thanks to very rough, laser-sintered titanium surface
  • Cup design offering several options for screw anchoring
  • Two cranial oblong holes for greater flexibility of screw fixation
  • The hex connection offers rotational stability during cup implantation
  • Roughened surface of inner cone for rotationally stable liner fixation


Plasmafit® Revision – Combinations

  • Vitelene® highly crosslinked polyethylene liners with vitamin E

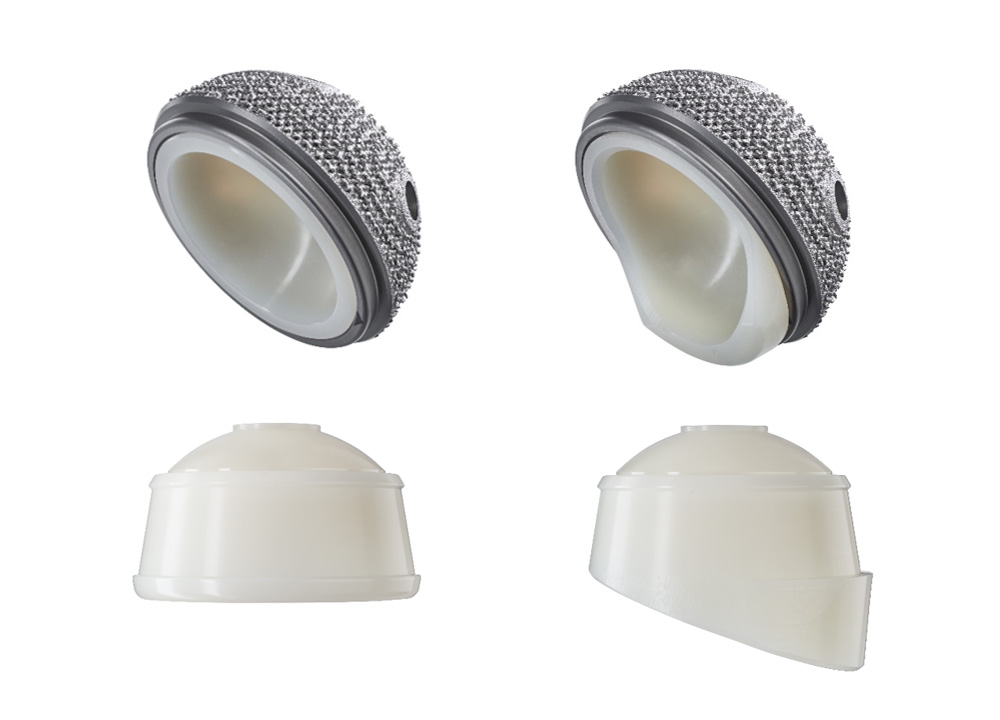

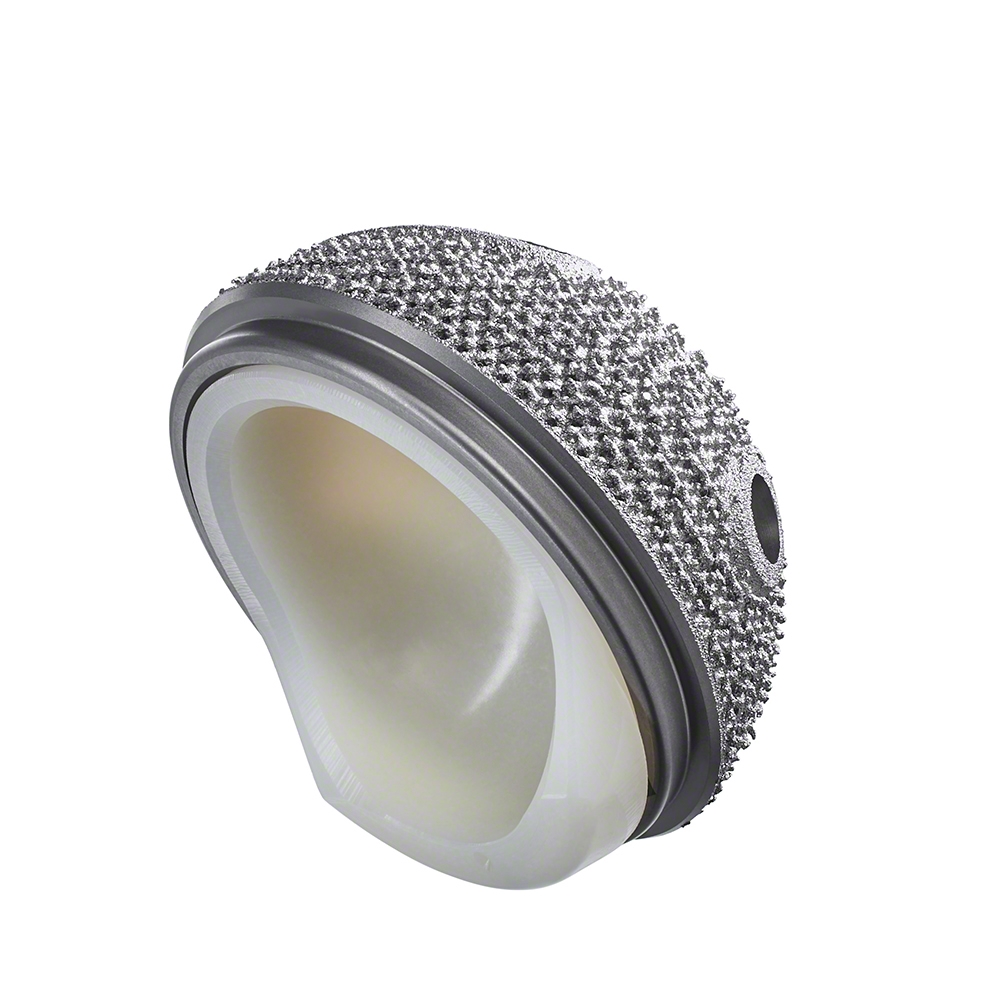

  • Six liner options for individual fitting solutions
  • Free 360° positioning of the liners
  • Fixation screws ø 6.5 mm
  • Combination with Structan® Augments


Interesting in learning more? Check out our e-learning module focusing on product concept and surgical technique!

Register now

Plasmafit® Revision – Highlight Topics

Laser-Sintering Technology

The profile structure of the Plasmafit® Revision cup surface is characterized by a special, very rough Structan® titanium structure. The structure is produced by an additive 3D printing process. This laser-sintering process permits precise and continuous shaping of the porous and dense implant design structures.

Intraoperative Flexibility

Plasmafit® Revision permits an intraoperative selection of modular liners made of Vitelene® as well as Dual Mobility liners.

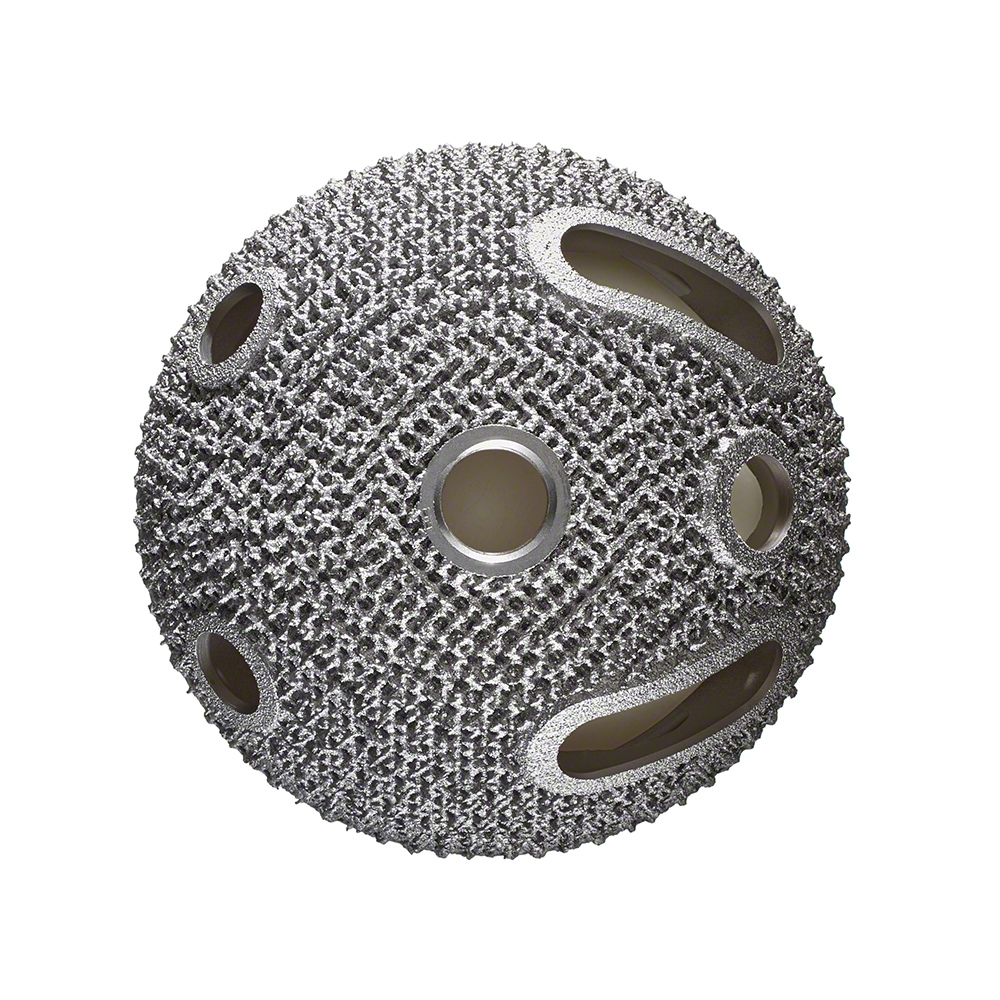

Plasmafit® Revision has three single-hole screw holes and two oblong holes. To bridge larger defects, an acetabular Structan® Augment can be additionally implanted.

One Acetabular Cup System

The AESCULAP® Plasmafit® Family provides an acetabular solution for total hip joint replacements. It covers indications from primary up to revision treatments. Patient-specific requirements are addressed in one system and complement each other using the same instruments, inlays, design parameters and surgical procedure.

Please enable marketing cookies to enable Youtube Video

Learn more about

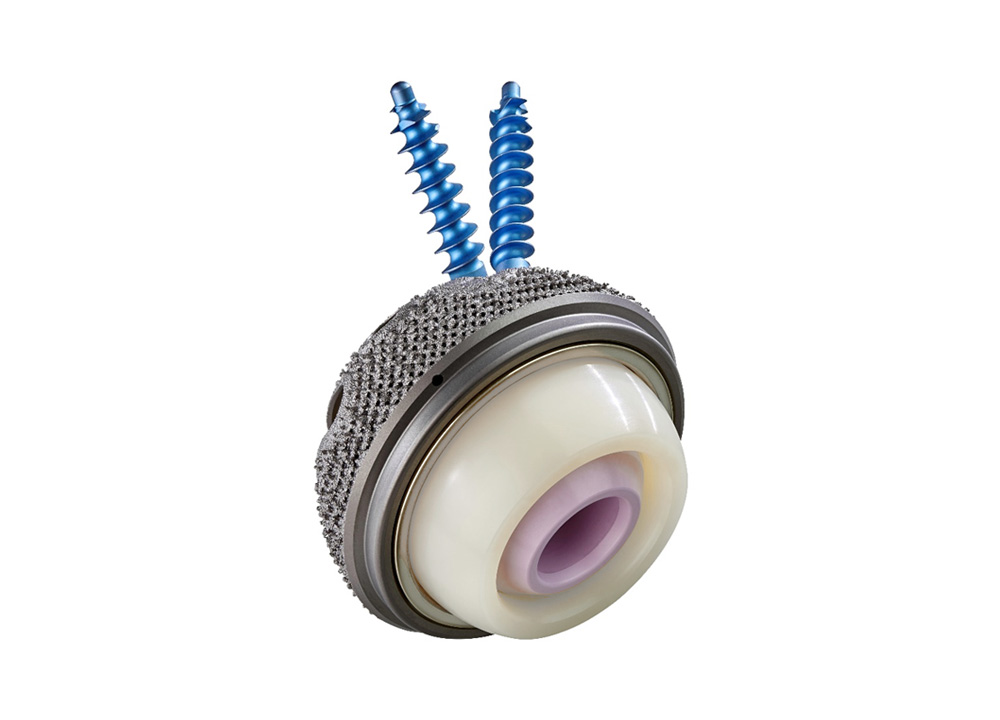

The Plasmafit® Dual Mobility concept addresses a high stability preventing hip joint dislocations.

Plasmafit® Dual Mobility liners can be combined with all cup options of the Plasmafit® Plus and Plasmafit® Revision cup implants. Dual Mobility combination is possible starting with cup size ø 46 mm.

Learn more about Plasmafit® Dual Mobility >>

The design of the Plasmafit® Revision inner geometry permits an intraoperative selection of modular liners made of Vitelene® as well as Dual Mobility liners.

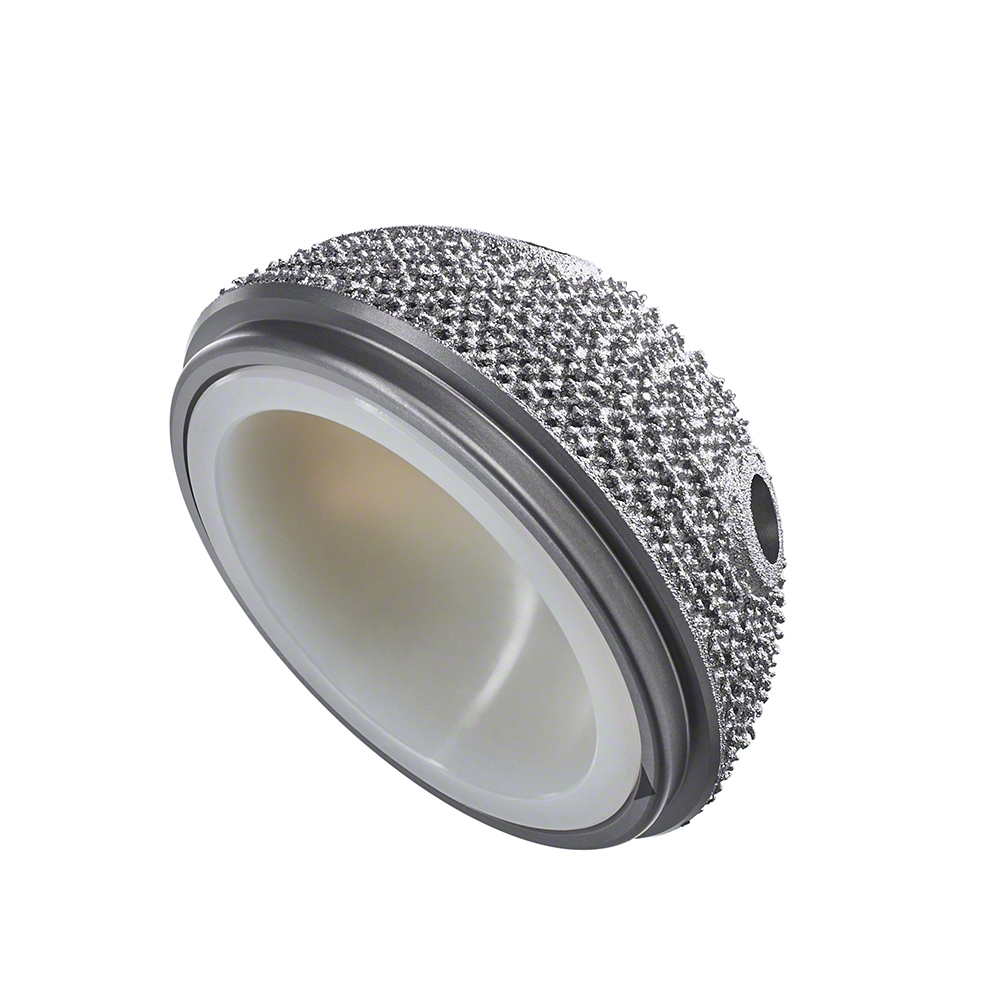

Large-area conical fixation in the cone area of the cup is used to anchor the Plasmafit® Revision liners. The rough titanium inner surface reduces relative movements of the liner to a few micrometers. The conical fixation surface area of the Plasmafit® Revision polyethylene liners also forms a seal against the migration of polyethylene particles from the articulating joint, thus reducing the risk of an osteolysis adjacent to the screw holes.

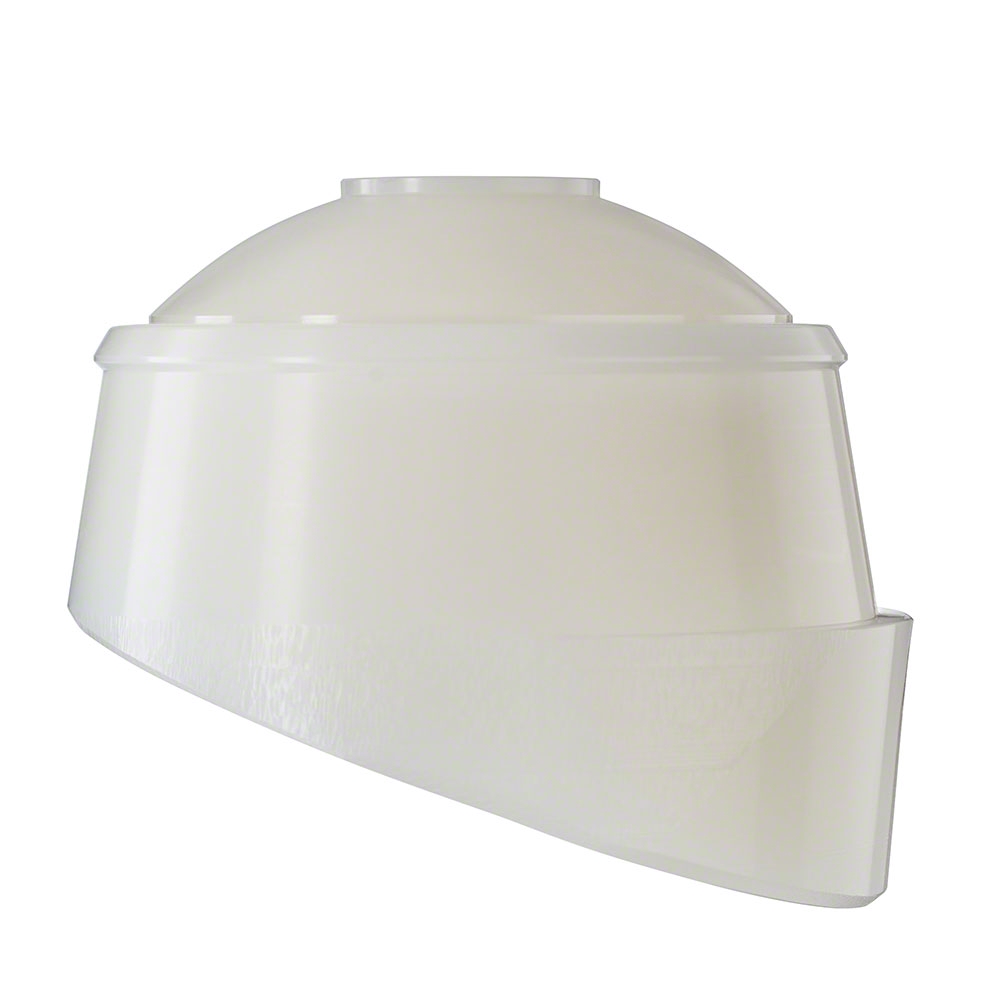

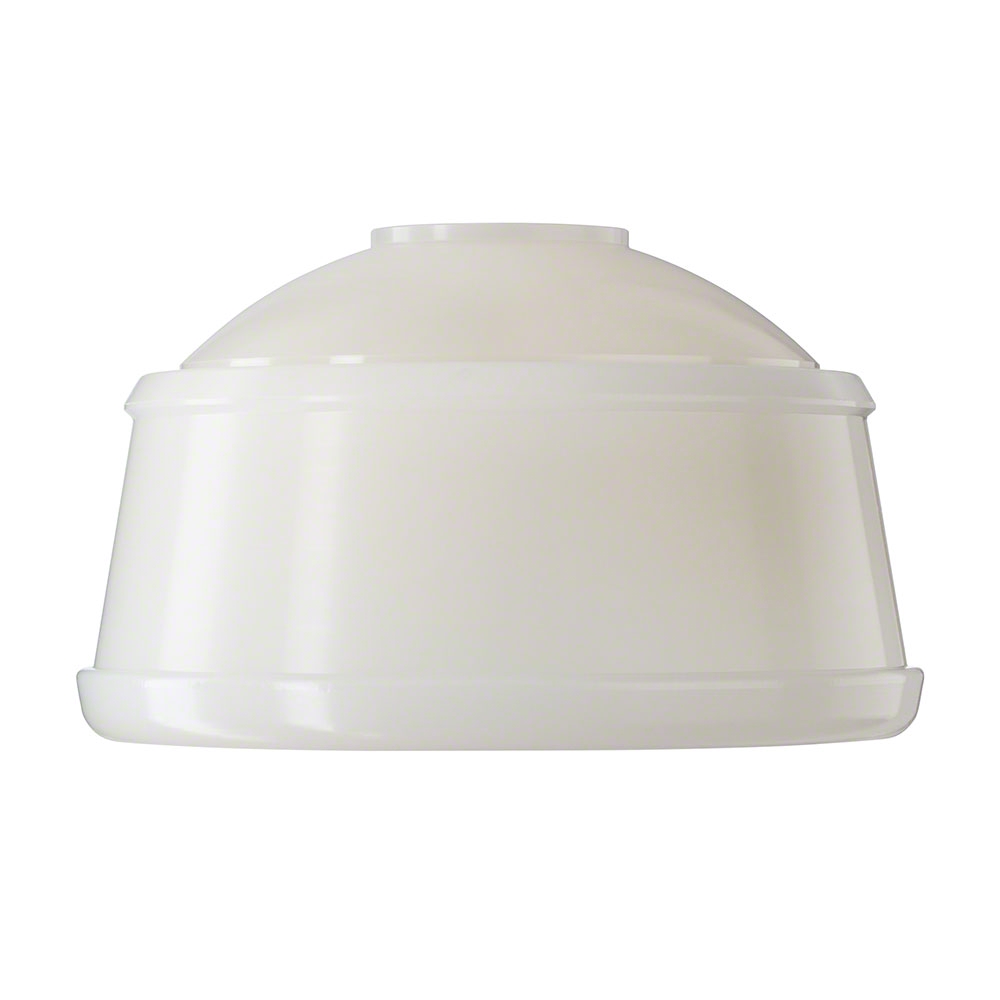

The Vitelene® Revision liners have a special geometrical shape with a snap connection. This enables mechanical fixation in the Plasmafit® Revision cup. The snap mechanism consists of the protruding snap lip at the upper end of the conical area of the liner and a small gap. The geometry of the inner cup reflects this protruding rim. This snap connection provides the revision liner with an additional anchoring option. The small gap / recess at the cup entrance plane is used to remove the liner in case of a revision.

Learn more about Vitelene® >>

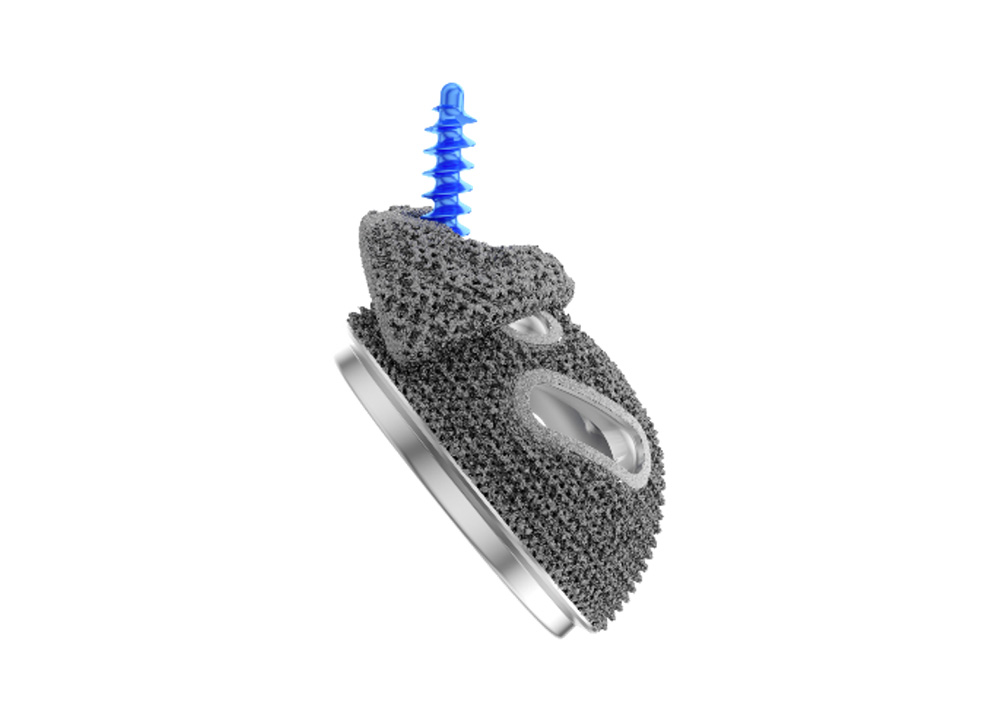

Bone defects can exceed the shape and size of the dimension of the revision cup. For stable anchoring and to bridge larger defects, an acetabular Structan® Augment can be additionally implanted.

Structan® Augments consist of a titanium alloy and permit the filling of defects, providing a stable grid structure and high surface roughness. The augments are adapted to the diameter of the Plasmafit® Revision cup. The diameter of the revision cup should be within a range of ±4 mm of the size of the selected Structan® Augments.

Learn more about Structan® Augments >>
