Interventional Vascular Therapy

Customized diagnotics and therapy kits

B. Braun provides tailored interventional vascular diagnostics and therapy kits designed and packaged according to individual specifications in the cath lab, radiology or oncology. Including high quality single use components and a digital kit configuration.

On this page

Create your individual interventional vascular therapy kits now!

Product and quality concept

Continuous quality control of the raw materials up to the finished products guarantees that all products made by B. Braun as well as manufactured by our partners fulfill your and our high quality standards.

For your advantage and security we cooperate with leading manufacturers of medical products. In your customized kits you get components of good quality, from well-known reliable partners.

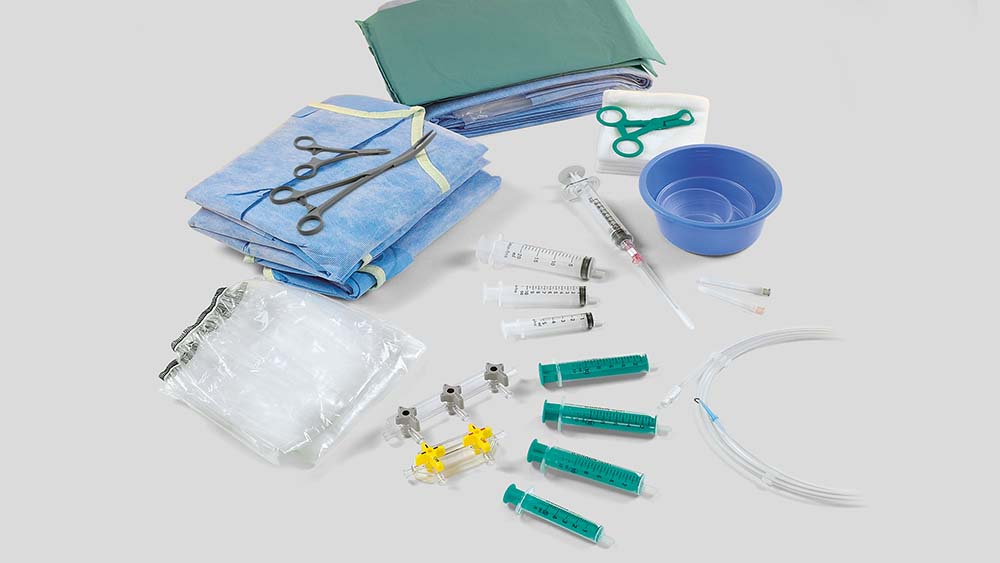

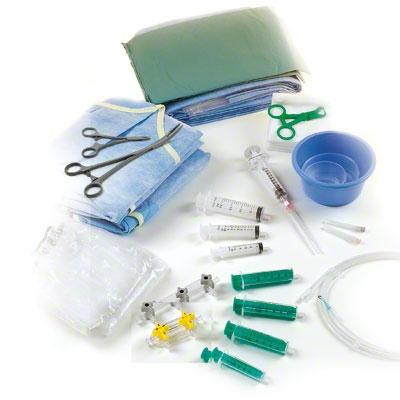

Example for customized cardiology kit
Example for customized port kit

Individual and user-friendly

We can provide your individual kit designed and packaged due to your specifications. Your advantages at a glance: Reduction of preparation time, only one order number, economical and ecological due to less packaging waste and minimized effort for disposal.

Step by step to your customized kits

Our product specialists develop a user-friendly kit solution together with you using the following method:


  1. Demand analysis and common discussion
  2. Kit proposal according to your requirements
  3. Samples within a very short time
  4. Quotation

Cardiology kits

Examples for cardiology basic kit

Angiography kit 3-way, OFF:

  • High pressure manifold, 3-way, OFF, connected with contrast media tubing, Intrafix air and Combidyn tubing
  • Angiography syringe 10 ml
  • Arterial puncture needle (Seldinger) 18 G
  • Angiography drape with 2 transparent windows
  • Standard guide wire, 150 cm, J3-tip, 0.035”
  • Gauze, 10 x 10 cm, 12-ply, 20 pieces
  • Sterican needle, G 21 green, 2 pieces
  • Sterican needle, G 22 black
  • Omnifix syringe LL, 5 ml
  • Omnifix syringe LL, 10 ml
  • Tray, 27 x 22 x 4 cm
  • Cover drape 100 x 150 cm


PTCA kit 4:

  • Inflation device 20 ml
  • High pressure 3-way stopcock
  • Y-connector 9,5 F
  • Metal insertion tool
  • Torquer

Product portfolio cardiology kits

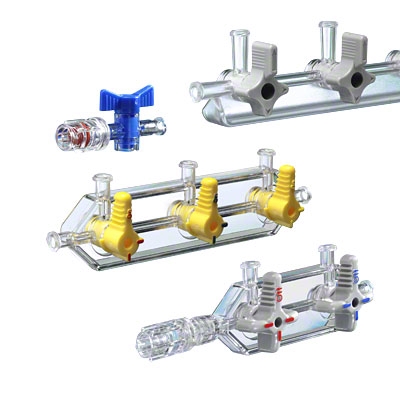

Manifolds

For a wide variety of functions, including new connections to fluids, without having to disconnect existing hose connections Connection to CatheterSaline solutionContrast mediaMonitoring systems Product variants 2-way or 3-way manifoldsFull and half body designOn / Off versionPressure resistance 35 bar (500 psi)Pressure resistance 70 bar (1000 psi)Rotation adapterTransparent housing for visual inspectionLuer lock connector male / femaleColor-coded stopcocks

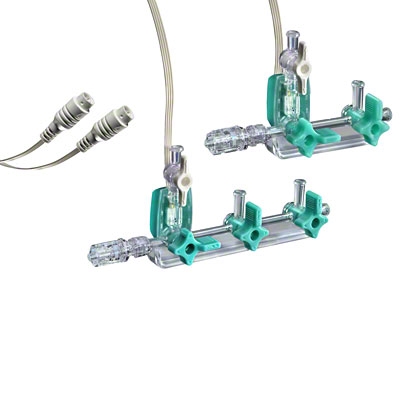

Manifold With Integrated Transducer

The Angiotrans transducer manifold is a combination of the proven Combitrans microship technology (disposable pressure transducer) and the Angiodyn half body manifold. Compared to a traditional system Angiotrans provides a higher frequency, a more responsive system with improved waveform fidelity and less artifacts. The Angiotrans transducer manifold is 100% performance tested and can be also included in your customized procedure pack from B. Braun. Benefits Easier and time saving set upCloser positioning of the pressure sensor to the signal sourceBetter signal response due to the closer sensor positionMinimized fluid volumesNo additional monitoring lines and domes necessaryFewer connections reduce potential of air bubble entrapment and unnoticed disconnections   Product range Angiotrans 2-port or 3-port manifoldsHalf-body designOn or Off versionPressure resistance 35bar (500psi), green handlesRotating adaptors where the customers wants them to be

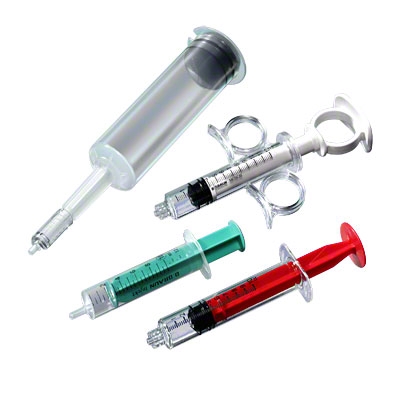

Angiographic Syringes

10 ml syringe with / without rotation adapter, Luer Lock20 ml syringe with rotation adapter, Luer Lock12 ml syringe with / without rotation adapter, Luer LockRing or pad version with / without finger rings availableSafety stop at 1.0 mlFurther versions available as kit componentSmooth plunger with double sealing ringClear housing Angiodyn Injector syringes for automatic contrast medium injection Using high pressure injectors up to 82 bar (1200 psi)High quality transparent polypropylene housing for the precise detection of air bubblesLuer Lock connection standardSingle sterile injector syringes for Angiomat 6000 TM, Illumena und Medrad (Mark V) available Spectraline single use syringes For hand injection of contrast media, heparin and saline solution10 ml and 20 ml Luer Lock in different color available

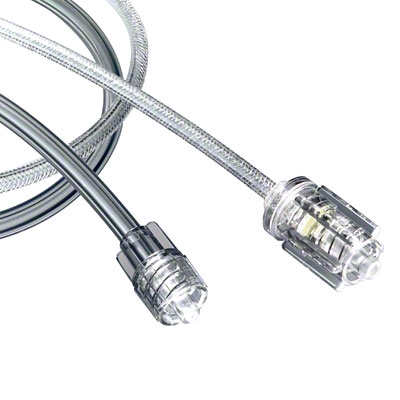

High Pressure Tubing Lines

Material: braided PUR (very flexible) Pressure stability tested up to 82 bar / 1200 psi.Luer lock fitting male/female with rotating adaptor.Single sterile tubing lines available in different lengths (50cm/75cm/100cm/120cm). Material: PVC (flexible) Pressure stability tested up to 70 bar / 1000 psi.Single sterile tubing lines available in different lengths..

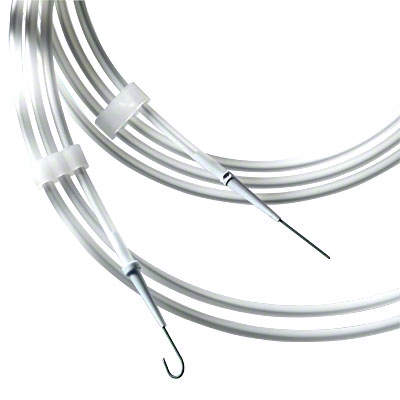

Guide Wires

Standard version with dispenser and Luer lock - fitting for flushing the wireWide range of guide wires with J-tip or straight endDifferent diametersLengths: 150 cm, 175 cm, 200 cm, 260 cmHigh quality PTFE-coated stainless nickel-chromium steel (C)

Accessories for Angiography

Contrast Saver System Contrast Saver SpikeContrast Saver Tube Image intensifier bags- and covers Protect your equipment from contamination and dustPE transparent film coverWith elastic fixation or drawstring

Accessories Angioplasty

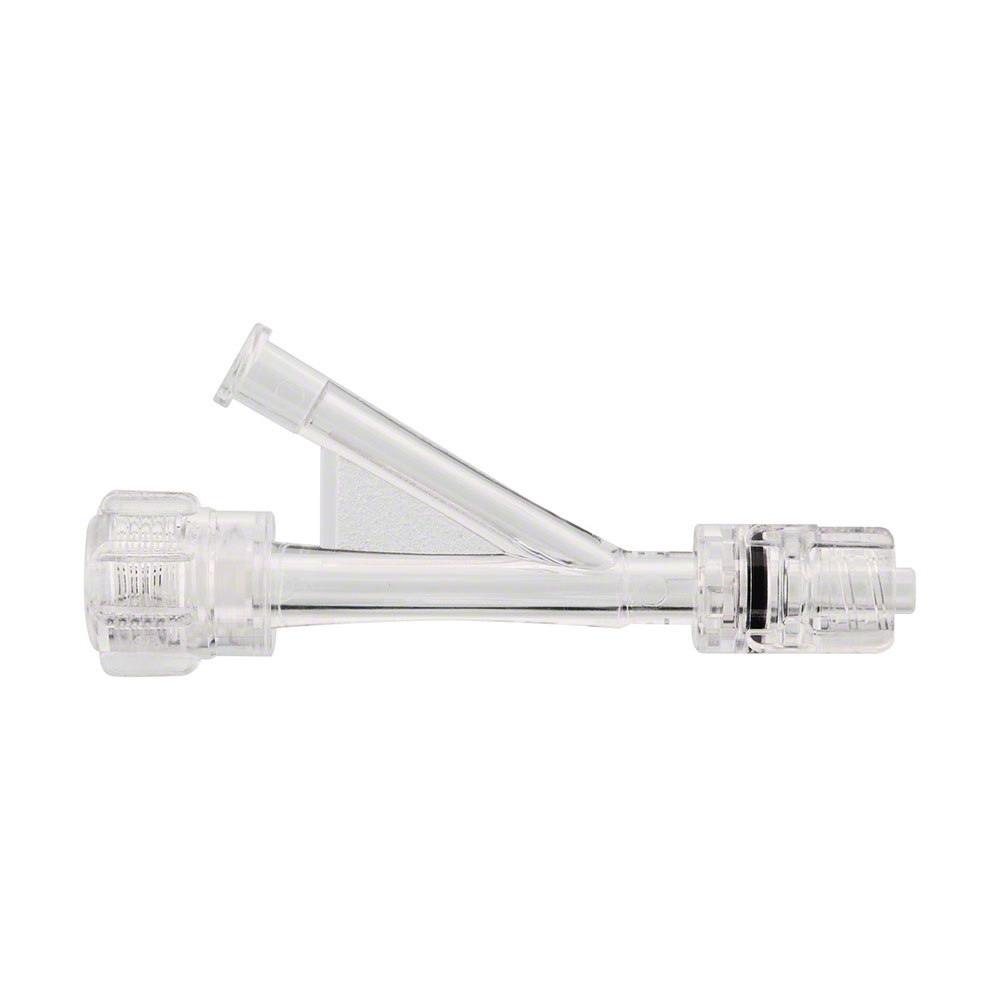

TorquerThe torquer is designed for guide wires.LuminescentWire grip for all diameters up to 0.022’’Y-ConnectorWith rotation adapter and Tuohy-Borst valve9.5 F lumenUnique Kissing BiBalloon AdaptorThe product enables the simultaneous inflation of two devices to perform interventional procedures (e.g. coronary bifurcation procedure)

Radiology kits

Examples for radiology basic kit

  • 1 x Patient cover drape 330 x 211 cm / 2 holes femoral
  • 1 x Cover drape 150 x 180 cm
  • 2 x Cover drapes 140 x 150 cm
  • 1 x OP tape 10 x 50 cm
  • 1 x Absorbent drape with adhesive tape 90 x 90 cm
  • 50 x Gauze compresses 10 x 10 cm, 12-fold
  • 2 x Angiodyn image intensivier cover 90 x 90 cm
  • 1 x Omnifix syringe LS, 20 ml
  • 1 x Omnifix syringe LL, 5 ml
  • 1 x Adhesive tape
  • 3 x Omnifix syringes LL, 20 ml
  • 3 x Omnifix syringes LL, 10 ml
  • 1 x Needle collector box
  • 1 x Sterican safety cannula 0,6 x 25 mm, 23 G
  • 1 x Safety scalpel fig. 11
  • 1 x Puncture needle 19G
  • 1 x Guidewire J3 FC-FS 175-035
  • 1 x High pressure 1-way stopcock, 1050 PSI
  • 1 x High pressure tubing 1200 PSI, 120 cm
  • 1 x Bowl 1000 ml
  • 1 x Bowl 250 ml
  • 1 x Universal clamp
  • 1 x Cover drape 152 x 152, reinforced

Disinfection kit:

  • 1 x Sponge forceps
  • 1 x Bowl 500 ml
  • 5 x Swabs

Product portfolio radiology kits

High Pressure Tubing Lines

Material: braided PUR (very flexible) Pressure stability tested up to 82 bar / 1200 psi.Luer lock fitting male/female with rotating adaptor.Single sterile tubing lines available in different lengths (50cm/75cm/100cm/120cm). Material: PVC (flexible) Pressure stability tested up to 70 bar / 1000 psi.Single sterile tubing lines available in different lengths..

Guide Wires

Standard version with dispenser and Luer lock - fitting for flushing the wireWide range of guide wires with J-tip or straight endDifferent diametersLengths: 150 cm, 175 cm, 200 cm, 260 cmHigh quality PTFE-coated stainless nickel-chromium steel (C)

Angiographic Syringes

10 ml syringe with / without rotation adapter, Luer Lock20 ml syringe with rotation adapter, Luer Lock12 ml syringe with / without rotation adapter, Luer LockRing or pad version with / without finger rings availableSafety stop at 1.0 mlFurther versions available as kit componentSmooth plunger with double sealing ringClear housing Angiodyn Injector syringes for automatic contrast medium injection Using high pressure injectors up to 82 bar (1200 psi)High quality transparent polypropylene housing for the precise detection of air bubblesLuer Lock connection standardSingle sterile injector syringes for Angiomat 6000 TM, Illumena und Medrad (Mark V) available Spectraline single use syringes For hand injection of contrast media, heparin and saline solution10 ml and 20 ml Luer Lock in different color available

Manifolds

For a wide variety of functions, including new connections to fluids, without having to disconnect existing hose connections Connection to CatheterSaline solutionContrast mediaMonitoring systems Product variants 2-way or 3-way manifoldsFull and half body designOn / Off versionPressure resistance 35 bar (500 psi)Pressure resistance 70 bar (1000 psi)Rotation adapterTransparent housing for visual inspectionLuer lock connector male / femaleColor-coded stopcocks

Port kits

Examples for port basic kit

  • 11 x Bottom drape
  • 1 x Top drape
  • 2 x Side drapes
  • 1 x Cover drape
  • 2 x Gauze compresses
  • 2 x Omnifix syringes 20 ml, LL
  • 2 x Omnifix syringes 10 ml, LL
  • 2 x Injekt syringes 20 ml, LS
  • 1 x Needle collector box
  • 1 x Safety scalpel Fig 11
  • 1 x Safety scalpel Fig 15
  • 1 x Safety needle 0,6 x 25 mm, 23G
  • 2 x Universal clamps
  • 2 x Angiodyn image intensifier cover 90 x 90 cm
  • 5 x Swabs
  • 50 x Gauze compresses
  • 1 x Post-operative dressing
  • 6 x Steristrips
  • 1 x Bowl 250 ml
  • 1 x Bowl 500 ml
  • 1 x Tray 24 x 25 x 5 cm
  • 1 x Cover drape 140 x 150 cm

Disinfection kit:

  • 1 x Sponge forceps
  • 1 x Bowl 500 ml
  • 5 x Swabs

Example for add-on kit for PICC-line:

  • 1 x Ultrasound Cover
  • 1 x Patient Drape 211 x 330 cm
  • 1 x Omnifix Luer Lock, 5 ml
  • 1 x Tesa yellow
  • 1 x Intensifier Cover 120 x 120 cm
  • 2 x Omnifix Syringe 10ml, LL
  • 1 x Grip-Lok®
  • 1 x Label red printed with Lidocain
  • 1 x Sterican G27, 10, 40 x 20 mm, grey
  • 1 x Sterican G22, 10, 70 x 40 mm, black
  • 1 x Needleholder1 x Tray blue 250 ml
  • 1 x Scalpel
  • 10 x Compresses 10 x 10 cm, 12-ply
  • 5 x Gauzes
  • 3 x Paper Towel
  • 3 x Clamp
  • 2 x OP Coat XL
  • 1 x Cover drape 150 x 140 cm

Product portfolio port kits

High Pressure Tubing Lines

Material: braided PUR (very flexible) Pressure stability tested up to 82 bar / 1200 psi.Luer lock fitting male/female with rotating adaptor.Single sterile tubing lines available in different lengths (50cm/75cm/100cm/120cm). Material: PVC (flexible) Pressure stability tested up to 70 bar / 1000 psi.Single sterile tubing lines available in different lengths..

Guide Wires

Standard version with dispenser and Luer lock - fitting for flushing the wireWide range of guide wires with J-tip or straight endDifferent diametersLengths: 150 cm, 175 cm, 200 cm, 260 cmHigh quality PTFE-coated stainless nickel-chromium steel (C)

Accessories for Angiography

Contrast Saver System Contrast Saver SpikeContrast Saver Tube Image intensifier bags- and covers Protect your equipment from contamination and dustPE transparent film coverWith elastic fixation or drawstring

Haemodynamic kits

Examples for haemodynamic basic kit

  • IV-set
  • Transducer with flush device and stopcock
  • Pressure tubes with integrated stopcocks

Product portfolio haemodynamic basic kits

High Pressure Tubing Lines

Material: braided PUR (very flexible) Pressure stability tested up to 82 bar / 1200 psi.Luer lock fitting male/female with rotating adaptor.Single sterile tubing lines available in different lengths (50cm/75cm/100cm/120cm). Material: PVC (flexible) Pressure stability tested up to 70 bar / 1000 psi.Single sterile tubing lines available in different lengths..

Guide Wires

Standard version with dispenser and Luer lock - fitting for flushing the wireWide range of guide wires with J-tip or straight endDifferent diametersLengths: 150 cm, 175 cm, 200 cm, 260 cmHigh quality PTFE-coated stainless nickel-chromium steel (C)

Accessories for Angiography

Contrast Saver System Contrast Saver SpikeContrast Saver Tube Image intensifier bags- and covers Protect your equipment from contamination and dustPE transparent film coverWith elastic fixation or drawstring
