Treatment of Hydrocephalus
MIETHKE gravitational valves

Designed to give you confidence

The critical issue in shunt technology is the posture-dependent hydrostatic pressure change. Hydrocephalus shunts with gravitational units can overcome the posture-dependent effects of gravity, reduce complications of overdrainage and have shown positive results with good clinical outcomes and significant reductions of overdrainage events. [1]

Learn more about the benefits

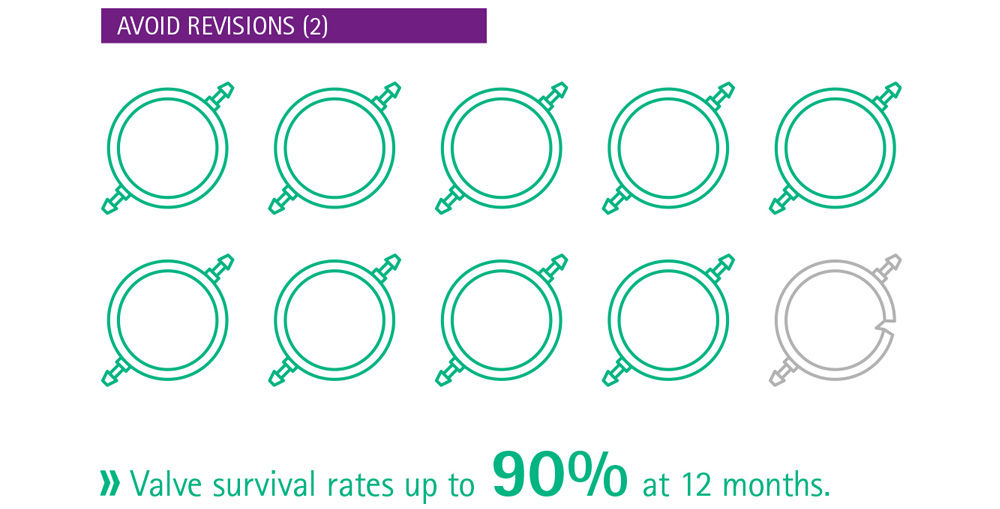

Clinical studies have shown that MIETHKE gravitational shunts reduce the risk of revisions. They exhibit a high rate of shunt survival across all age groups, with valve survival rates as high as 90% at 12 months [1] and above 80% after 2 years. [2] For infants, a group known to have a higher rate of complications than adult patients, favorable survival rates were also observed. [2] Further, the risk of overdrainage was reduced by 36% compared to conventional valves, i.e., one additional overdrainage complication in every third patient undergoing shunting can be prevented by using a gravitational valve. [5]

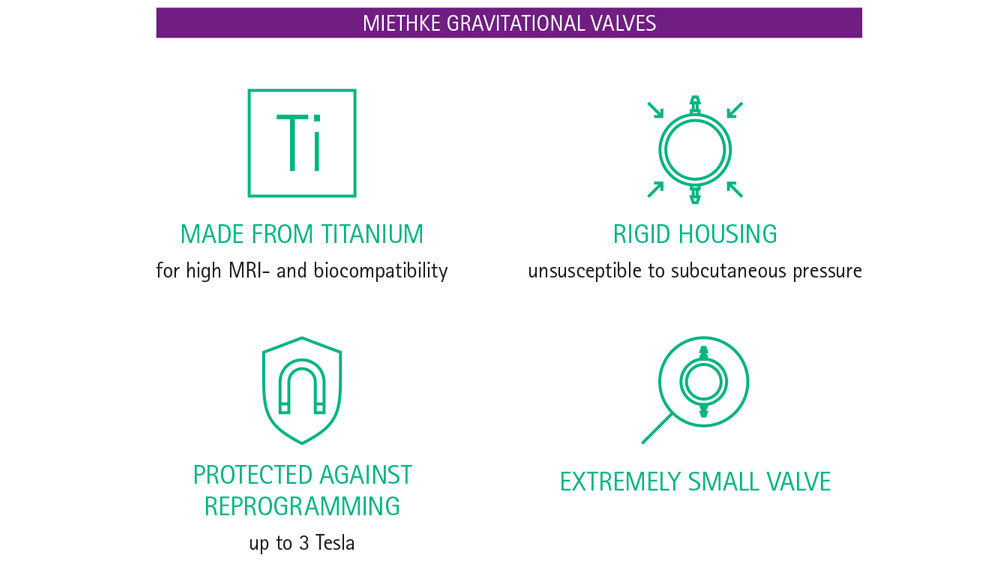

All MIETHKE valves are manufactured with high precision from titanium. The strength of titanium allows the valves to be made extremely small, but with optimized flow paths. The rigid housing makes the titanium shunt valves unsusceptible to subcutaneous pressure. Titanium is considered an excellent choice for biomedical applications with high biocompatibility. [6] In addition, titanium is MRI compatibility.

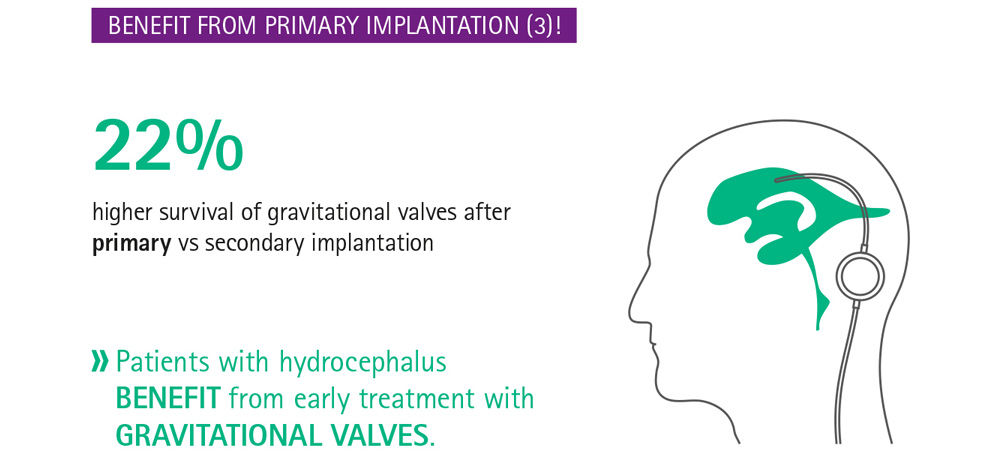

Current evidence suggests that delay in treatment is harmful for the patient, [7] even when the delay is as short as 3 months. [8] Especially in infants with hydrocephalus, whose brains are still developing, the primary treatment choice and possible complications have a relevant impact on the long-term outcome. [9] Infants who received a gravitational shunt as part of a shunt revision had a lower rate of shunt survival than those with a primary implantation of a gravitational shunt, [9] stressing the importance of optimal primary implantation.

Delay in treatment of hydrocephalus may be harmful and early intervention is indicated, particularly when considering that not all complications are reversible. Hence, it is important to make use of the best available treatment and to get it right the first time.

The critical issue in shunt technology is to simulate the posture-dependent hydrostatic pressure change. [10] Gravitational shunts, which compensate for posture-dependent hydrostatic pressure changes, can prevent overdrainage. [11] In the horizontal position, the gravitational valve opens completely and hence does not contribute to the overall flow resistance, while in the vertical position, the flow resistance is determined by both the gravitational valve and the differential pressure valve.

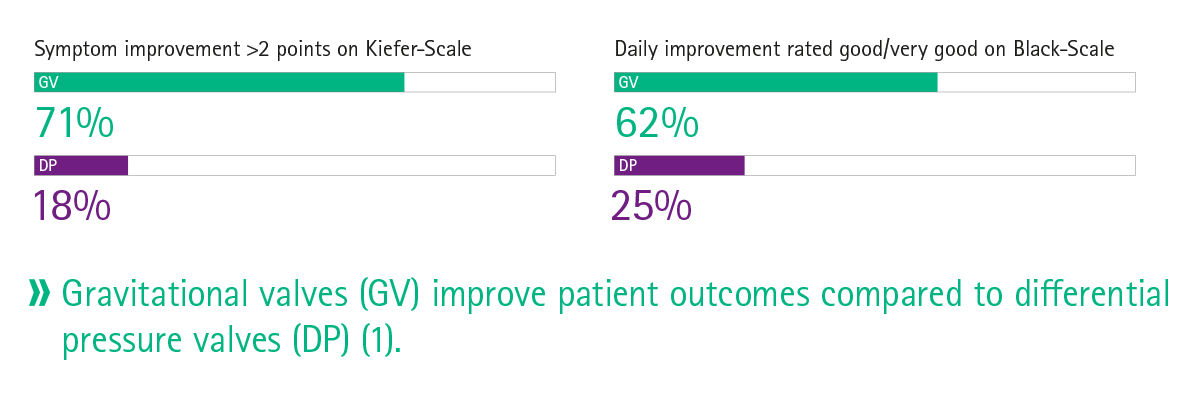

Clinical practice has shown that the usage of programmable valves with MIETHKE gravitational shunts can lower the number of shunt revisions due to over- and underdrainage [3] and improve symptoms and the overall daily functioning. [10] Further, gravitational shunts have been shown to be efficacious in the treatment of hydrocephalus in infants. [12]

MIETHKE gravitational shunts can compensate for overdrainage without compromising the setting for the supine position. The optimal opening pressure for each patient when standing and when lying can be set – without needing to compromise.

The unintentional reprogramming of valves by low-intensity magnetic fields is of great concern for patients and physicians alike. But how can one be sure that a valve will not be reprogrammed accidentally? The key question surely is whether the programmable valve is protected from reprogramming by the strong fields generated during MRI. If the magnetic fields of an MR system cannot reset the setting then low-intensity magnetic fields should also have no influence. Programmable MIETHKE valves have an ‘Active-Lock mechanism’, which protects them from reprogramming by magnetic fields of up to 3 Tesla. [13]

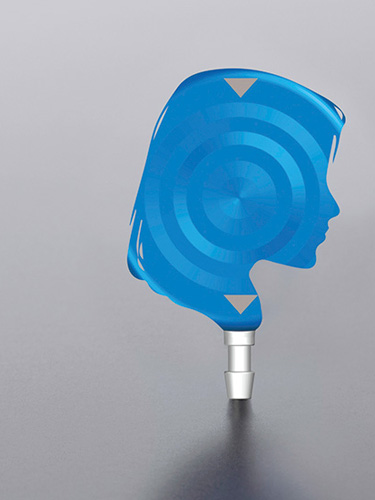

The next shunt generation

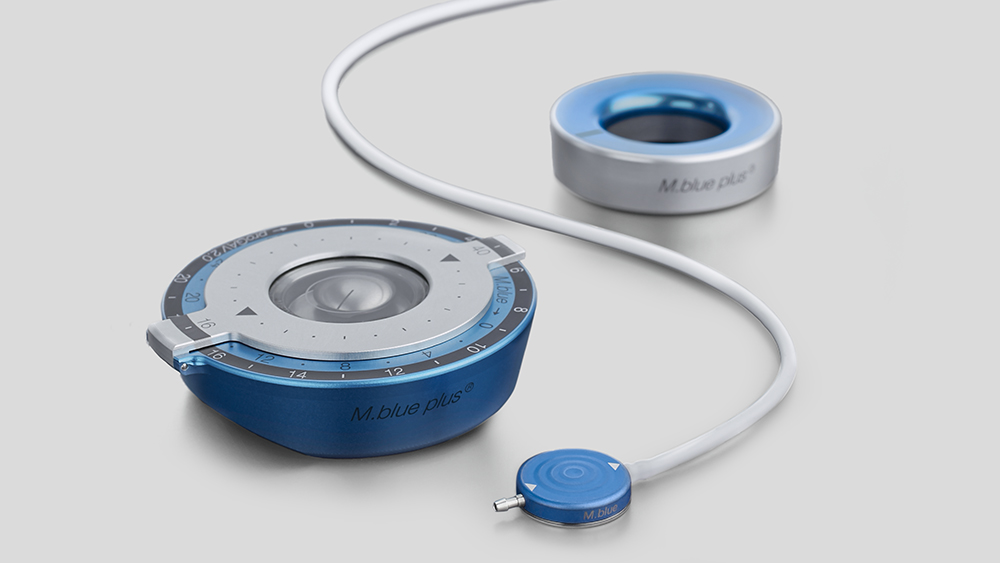

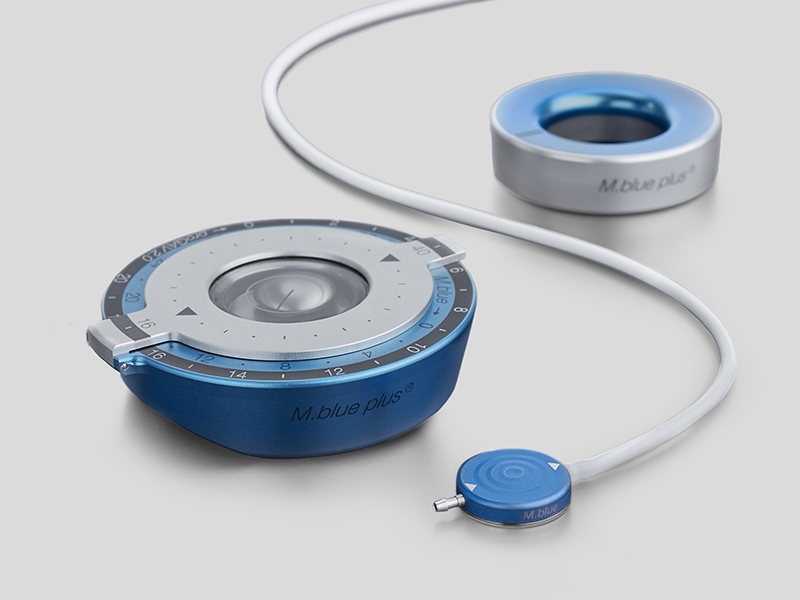

When developing a hydrocephalus valve which offers an optimal individual treatment, it is crucial to focus on the flexible adjustability of the opening pressure during the active time of the day, i.e., the upright body position. After fixed pressure gravitational valves and adjustable gravitational valves, the® provides neurosurgeons and patients with the next generation of hydrocephalus valves operating in a position-dependent manner.® is the essence of 26 years of experience with valve technology for hydrocephalus and the feedback of numerous doctors and patients worldwide.
