AESCULAP® 3D Cages
Unfold new spaces for fusion

Surgical flexibility in posterior stabilization procedures

Please enable marketing cookies to enable Youtube Video

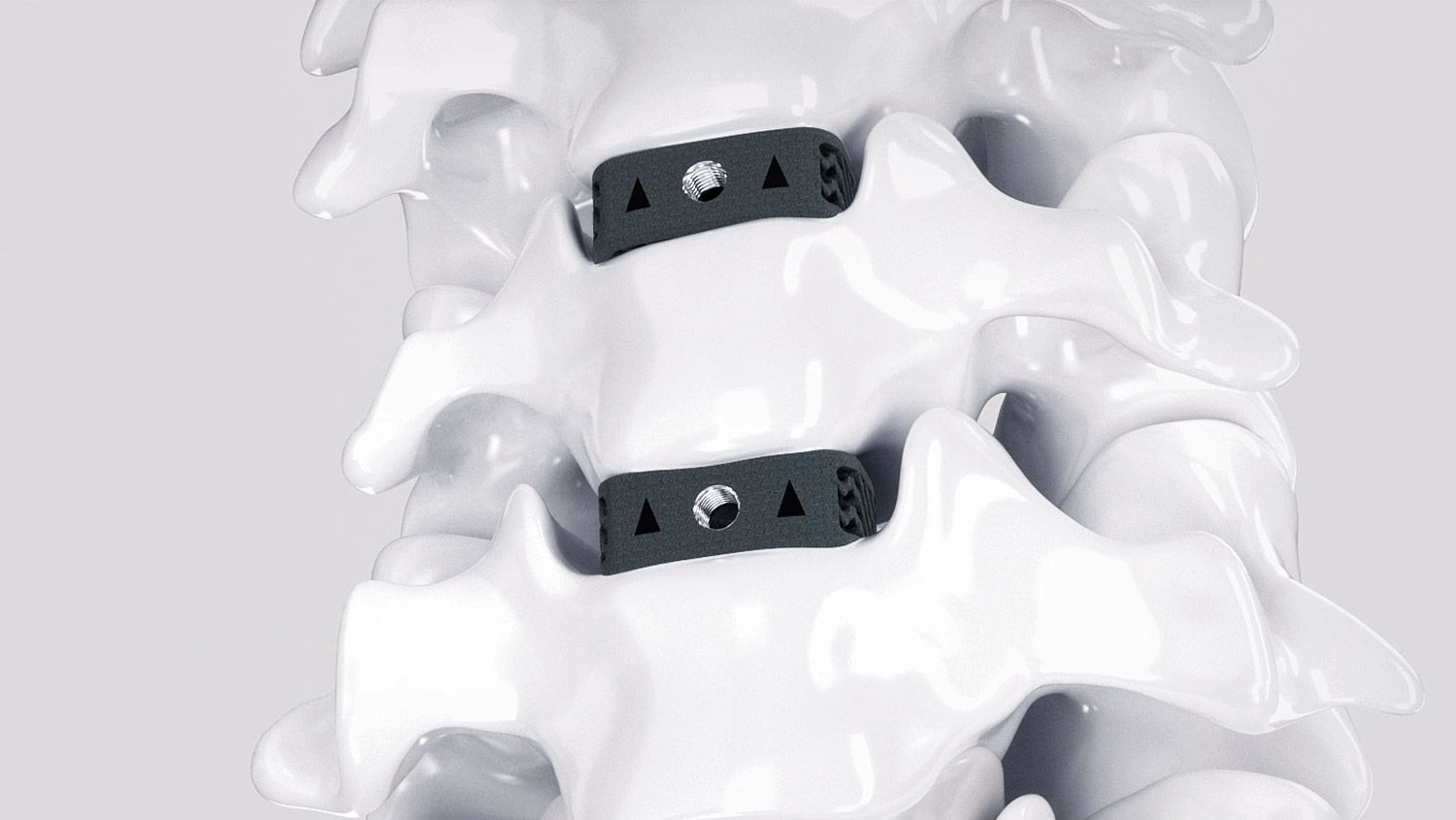

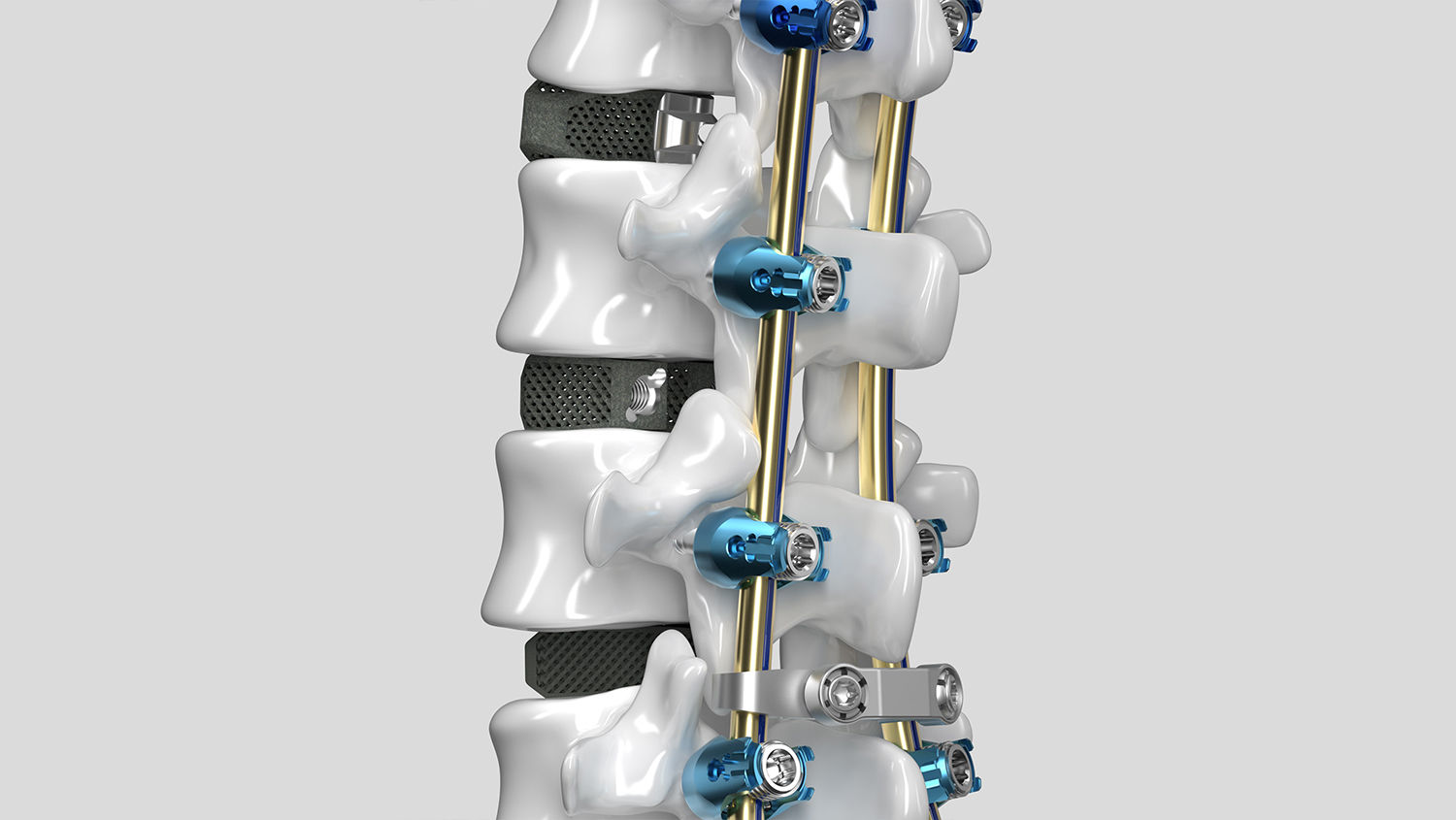

With the AESCULAP® 3D Cages we extend our spine platform by having designed a perfect partner for AESCULAP® Ennovate®: we offer you ONE solution for surgical flexibility in posterior stabilization procedures.
Interbody fusion remains an effective clinical treatment for a range of spinal disorders.
To achieve a successful fusion, good osseointegration properties and high mechanical stability of the implants are crucial.

That is exactly why we designed our 3D Cage family based on Structan® lattice structure and manufacture it with latest technology of laser sintering.

Innovative technology meets modern engineering

The technology of laser sintering

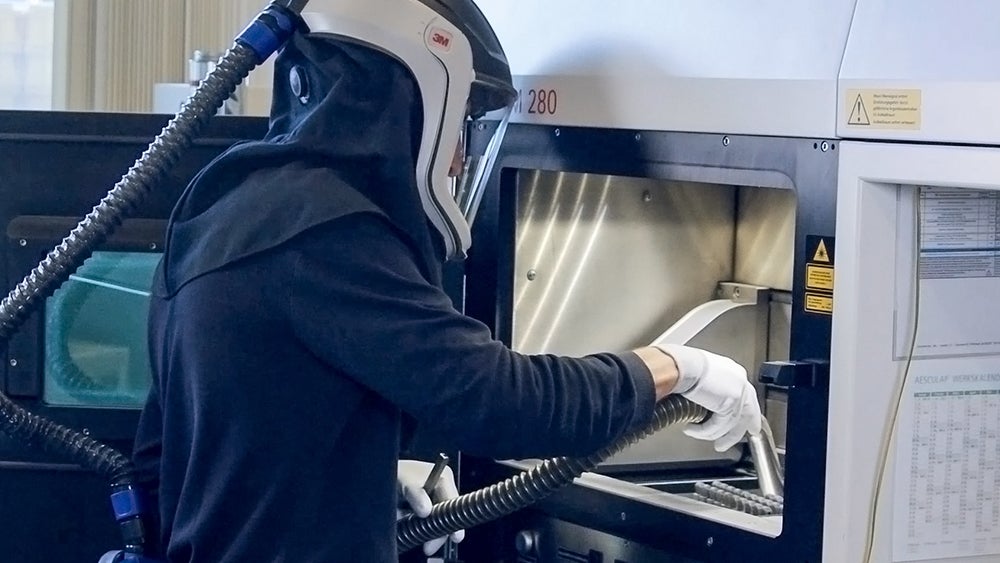

Additive manufacturing – 3D printing –means a layer-by-layer process to design a device using laser beam and metal powder. This innovative laser beam melting technology is of growing importance in the manufacture of implants, as it allows to create various fine and porous surface structures based on 3D-CAD data with the aim to support bone-ingrowth. Homogenous or heterogeneous lattice structures or combinations of various kinds of structures and surfaces are generally conceivable, which means a high degree of design freedom.

We combined our long-time experience in designing and manufacturing spinal implants with latest technology and produce in-house our AESCULAP® 3D Cages.

The lattice structure Structan®

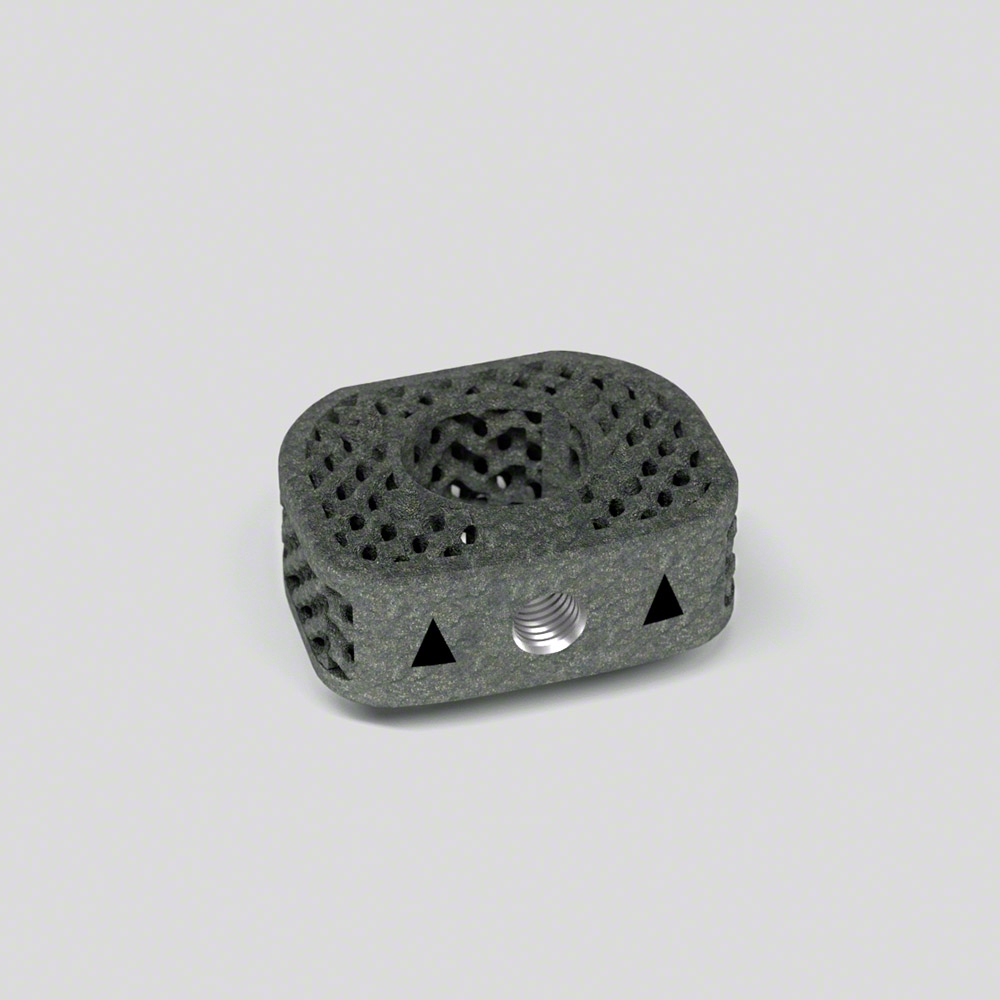

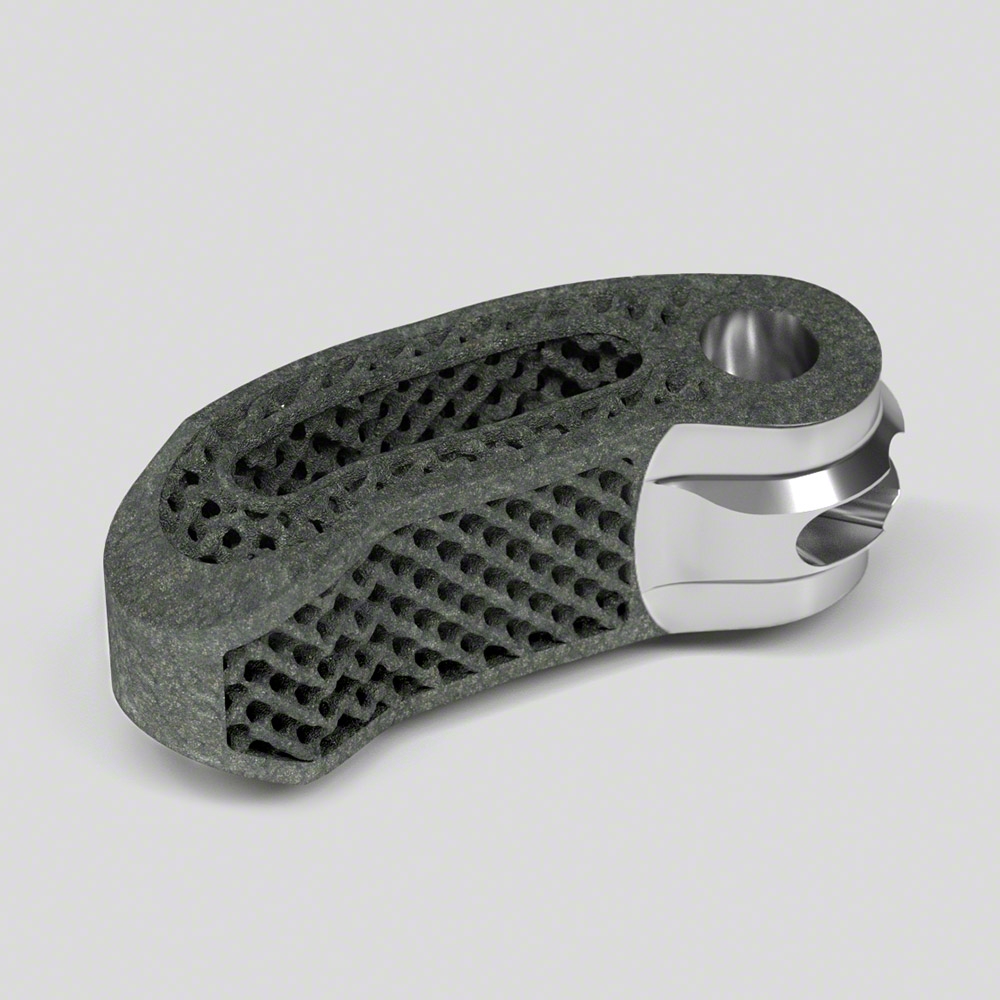

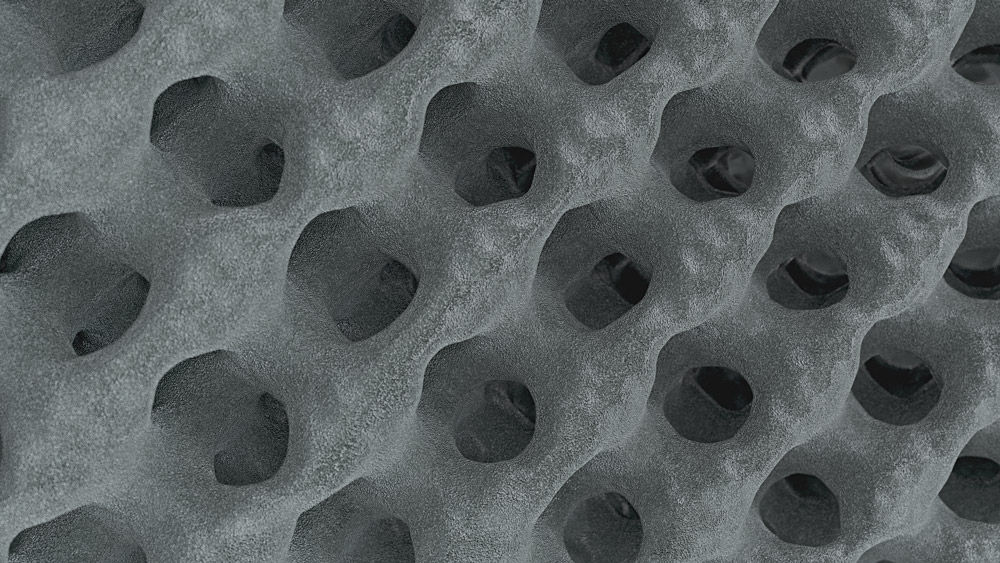

AESCULAP® 3D Cages are engineered from Structan® – a lattice structure with largely isotropic behavior. Ti6Al4V ELI was chosen as a proven and biocompatible material for implants. [1]
Structan® features an all-over regular pore size and porosity in a favorable range to stimulate bone ingrowth. [2-7] Moreover the Young’s modulus of Structan® is developed to be close to that of cortical bone. [8] This may prevent subsidence into the vertebral body. [9] In addition, this may result in improved bone growth. [10] The elasticity combined with a high compressive strength contributes to high safety against failure due to breakage. [11-13]
The 3D cages are clearly visible in X-ray and CT and allow for full assessment of positioning and details of internal structure. [14,15]

All aspects are important for choosing an interbody fusion implant and Structan® is designed to deliver an attractive material choice for you.

AESCULAP® 3D Cage portfolio

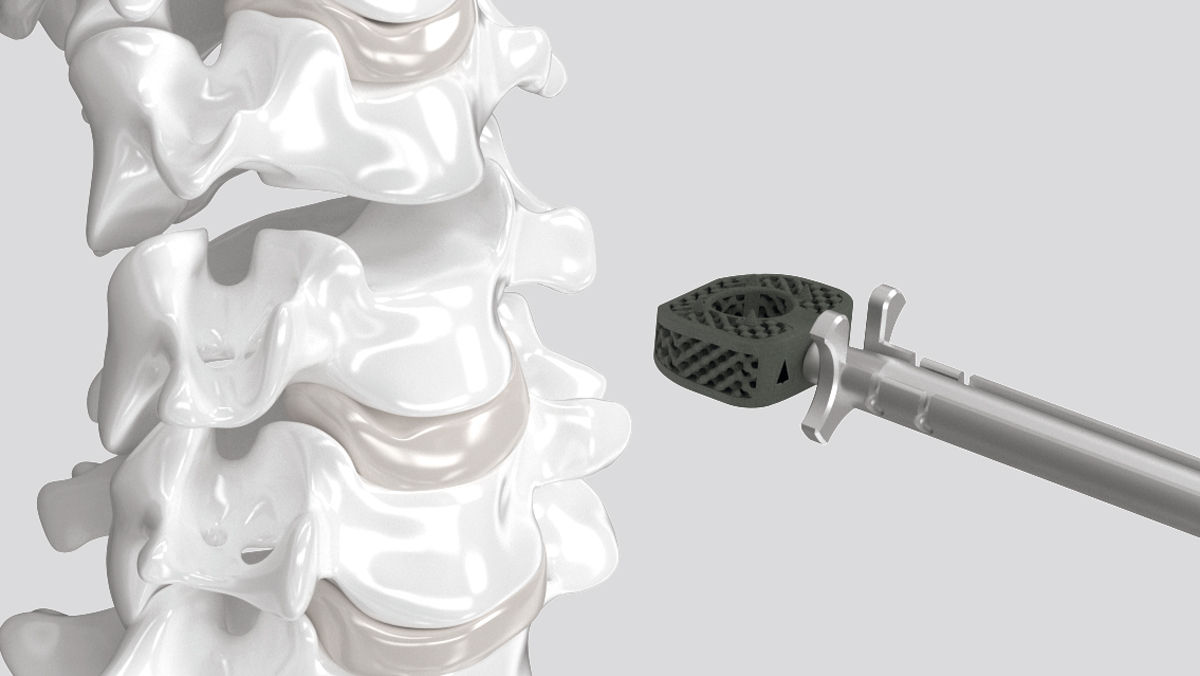

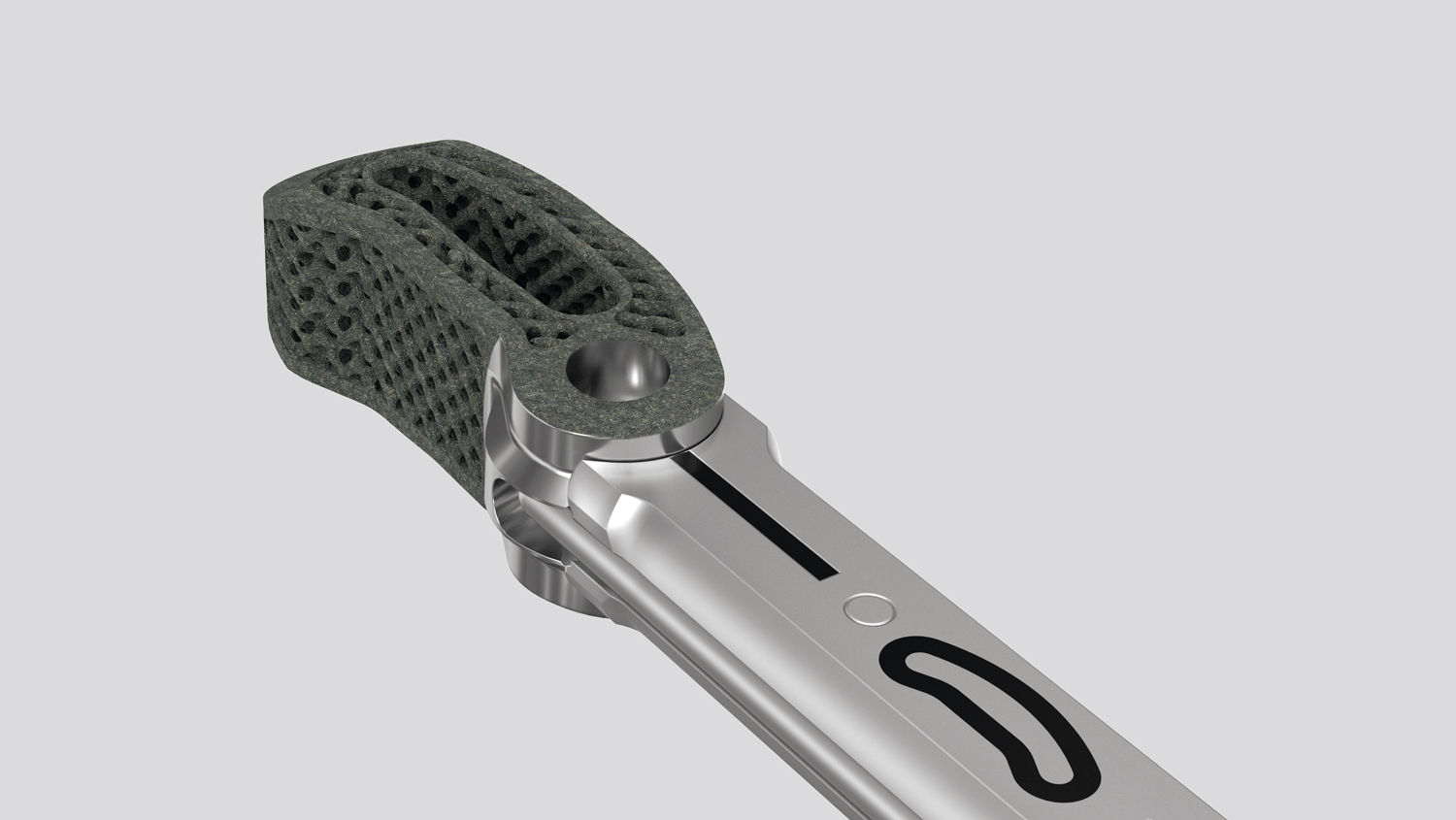

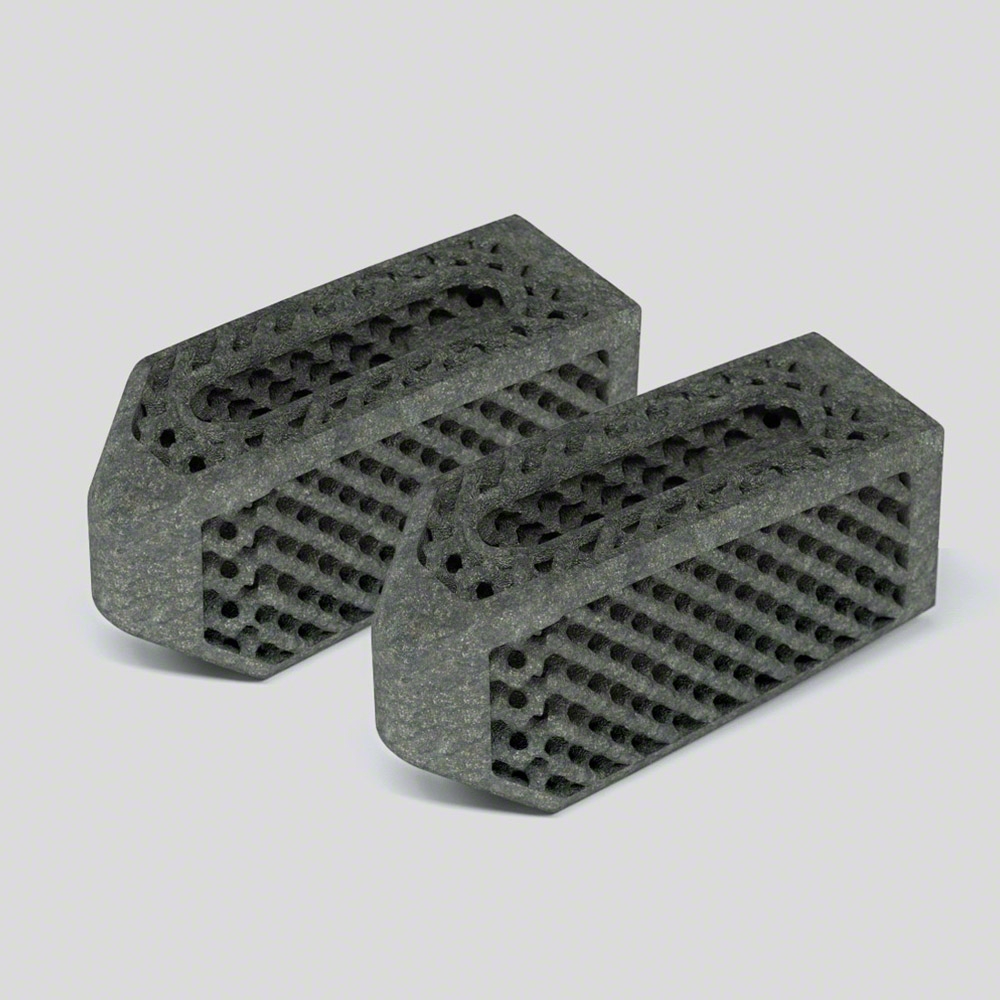

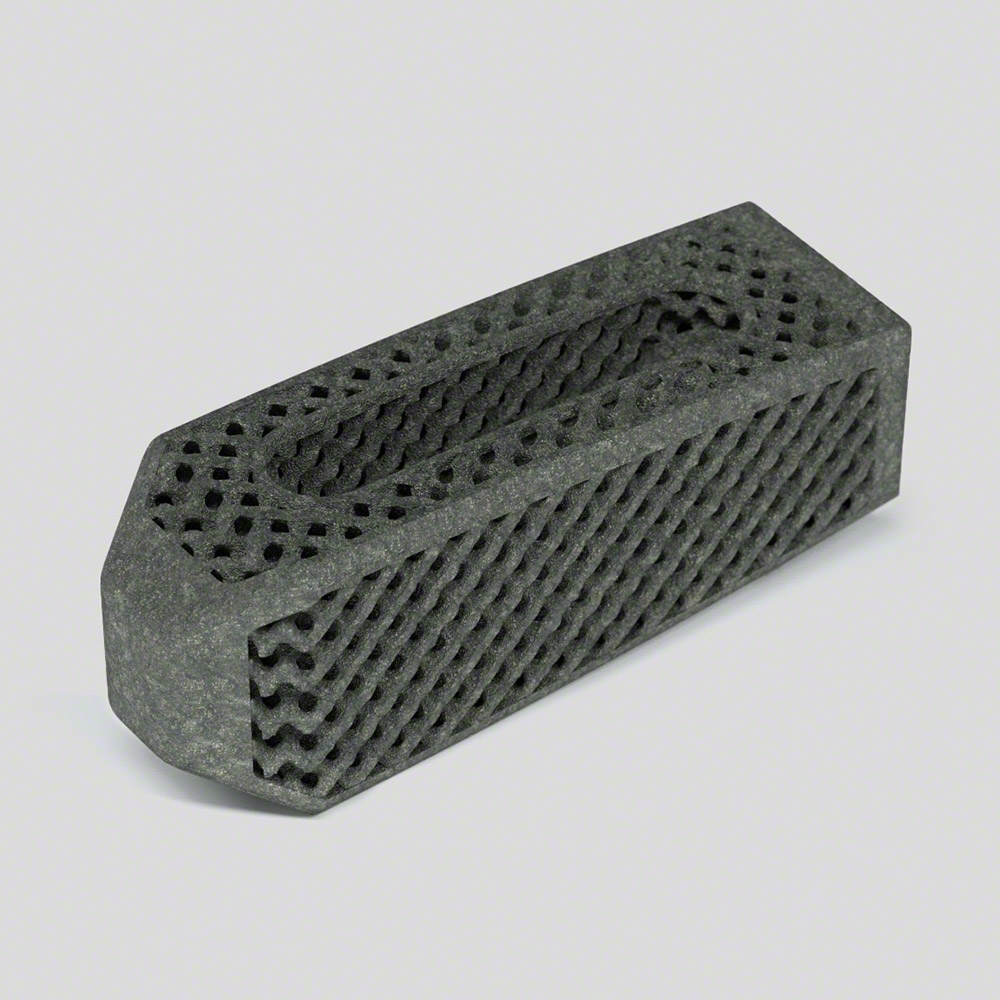

The 3D cage portfolio comprises implants and instruments for ACDF, PLIF, TLIF and Oblique TLIF procedures depending on indication, treatment concept and your preference.

Unfold new spaces for fusion – Are you ready to explore more?

Contact us now
